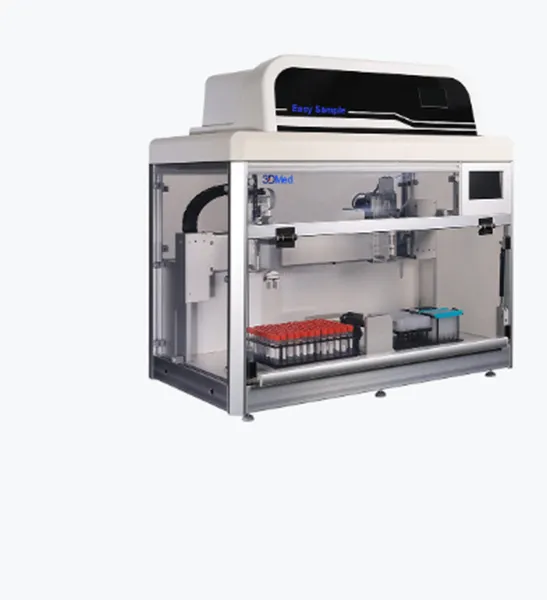

ANDiS 3100 Sample Preparation Workstation
ANDiS 3100 Sample Preparation Workstation
ANDiS 3100 Sample Preparation Workstation is a medium-throughput sample transfer workstation. It integrates tube de-capping & re-capping, human liquid specimens transfer and bio-safety system
Features
Medium-throughput
96 samples in 45 min, 3000 samples in 24h
High precision
Automated pipetting with principal of displacement
Reliable
Using data tracking system to complete process traceability, reducing human errors
Manpower saving
Hands-on time is less than 2 min
CV
30μL<3%,200μL<1%
Product Specifications
Throughput
96 samples
< 45 min (including negative and positive controls)
Models
10 mL/2 mL
10 mL Model Pipetting Performance
Pipetting range: 10~500 µL
Pipetting precision: 30 µL < 3%, 200 µL < 1%
2 mL Model Pipetting Performance
Pipetting range: 5~50 µL
Pipetting precision: 10 µL < 3%
HEPA Filter
Yes
UV Light
Yes
Dimensions
1100 x 680 x 850 mm
Negative Pressure
Yes
Lighting
Yes
Weight
162 kg
