Platform Overview
Precision Particle Fabrication™ technology produces uniform microspheres and microcapsules with narrow size distribution and precise control over particle structure. Orbis’ technology is an elegant and robust solution with countless applications. With unprecedented control of particle size, previously hidden doors are suddenly open. That means new ways to improve and differentiate your products, including their delivery, efficacy, and safety.
Key Aspects
Continuous-flow, high-volume nozzle technology with precise control over key attributes responsible for controlled release, including size, composition, coating, and materials.
- Controlled diameter from 10 μm up to 1 mm
- Production rates of kg/hr to kg/min, depending on the application
Flexible and customizable to accommodate almost any active ingredient:
- Small molecules (hydrophilic and hydrophobic)
- Macromolecules, polymers, nucleic acids, proteins
- Chemotherapeutics, biologics
Proven capability to produce a variety of construction and release profiles:
- Solids, microcapsules, porous spheres
- Sustained, delayed, pulsatile release profiles
Additional Benefits
- Seamlessly integrate into current processes
- Complete encapsulation
- Single-step process
- Batch-to-batch reproducibility
Adare uses two physical processes simultaneously to create uniform droplets: piezoelectric vibration and a co-flowing non-solvent “carrier” stream. Other vibratory technologies fall short because the smallest achievable particle size is governed by the orifice diameter. For instance, in other vibratory processes, producing uniform 25 micrometer droplets requires machining a ~13 micrometer hole in a nozzle body. Such a small orifice does not allow passage of viscous solutions or concentrated suspensions, fouls easily after a small number of uses, and is not a scalable approach. This is why all other scaleable uniform microsphere technologies are limited to a size of ~ 150 micrometers. Conversely, Adare’s process allows production of those same 25 micrometer particles (and much smaller) with sufficiently large orifice diameters. Not to mention, Adare can achieve the same small sizes with a shell layer..
In Figure A, uses a two- or three- fluid vibrating nozzle with co-flowing axial “carrier” stream used to reduce jet diameter; the use of both physical mechanisms simultaneously is patent-protected. For any given mass flow rate, droplet size can be reduced simply by increasing the frequency of vibration. In Stratµm™ technology, the carrier stream is comprised of water, which is analogous to emulsion processes. In Optimµm® technology, the carrier stream is comprised of air or nitrogen, which is analogous to spray congealing or prilling.
In Figure B, three-fluid nozzle adds further control over particle architecture by adjustment of “core” and “shell” flow rates, in addition to vibratory frequency. Not to mention, the compatibility with a wide range of excipients and particle sizes enables unique functionality and product opportunities for creating first-in-class prescription formulations or matching complex modified release profiles of over-the-counter products.

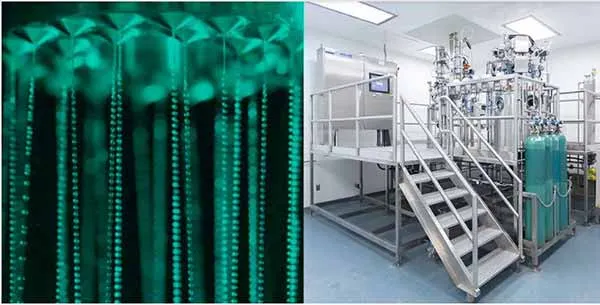

The Precision Particle Fabrication™ platform was developed with industry in mind. It delivers on the promise of precision microparticles at a previously unachievable scale. Scaled multi-nozzles have been developed for two- and three-stream flow for producing solid microspheres (Figure A) and core-shell microcapsules (Figure B). The platform technology has been divided into three subcategories: Stratµm™, Optimµm®, and Unisun®.
Stratµm™
- Particle sizes down to 10 μm with ± 5% deviation from the mean diameter
- Uses a water “carrier” stream
- Analogous to emulsion processes
- Requires lyophilization
- Compatible with PLGAs, PLAs, PCLs, PCPHs, alginates, gelatins, and other biopolymers
- Good for injectable small molecules, proteins, peptides, vaccines, and heat-labile molecules
Optimµm®
- Particle sizes down to 75 μm with Span values as low as 0.40
- Uses a nitrogen “carrier” stream
- Analogous to spray congealing
- No drying step or coating required
- Compatible with waxes, lipids, stearates, gelatins
- Good for oral small molecules, nutraceuticals, agricultural applications, flavorings, and heat stable molecules
