Ambra Sistemi Srl

MIXTEL

MIXTEL

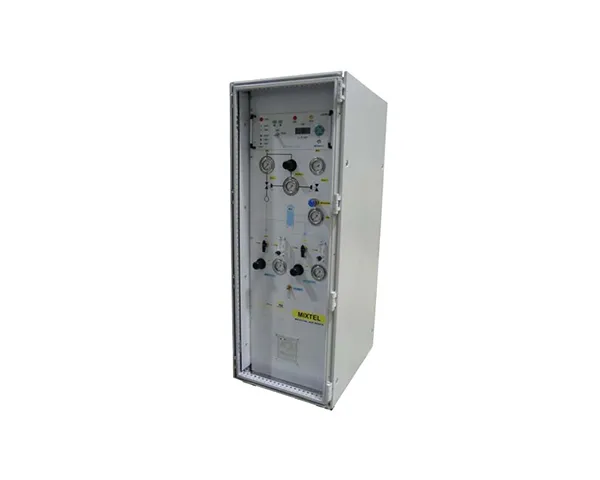

MIXTEL: synthetic Air production system for Medical applications

Typical application:

-Synthetic Air production for hospital applications

Functions:

-Local and remote monitoring for measures, alarms and timer concerning the unit in function
-Wide display 4 lines x 20 characters with led backlight
-Yellow and red alarm light for medium and high alarm status
-Alarm acoustic signal with stop pushbutton (Alarm ACK)
-Alarm recovery time programmable by the user
-Setup parameters and alarm thresholds programmable by pushbuttons on front panel or by remote via modem
-Visual indication of communication in progress and fault conditions
-Scheduled maintenance expiration warning
-System reactivation by remote
-Self checking system
-Auxiliary output switch for external cumulative alarm indicator or hooter
-Proprietary network protocol CRIONET
-Optical and acoustic indication about alarm status in accordance with European standard UNI ISO EN 7396-1 and UNI ISO EN 60601-1-8
