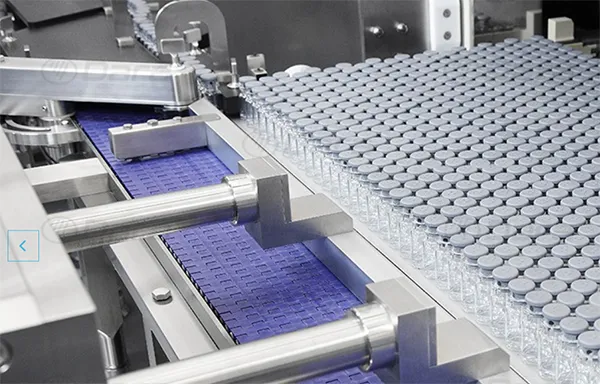

VLS + LyoPharm
Model NLS
Nest loading system VLS
Vial loading system VLS⁺
Vial loading system
Load sequence PUSH-IN Row by Row PUSH-IN PULL-IN
Unload sequence PULL-OUT Multiple Row PUSH-OUT PUSH-OUT
Based technology Robot Servo cylinder Servo chain
Output max. 115 "Nest" / h 12,000 uph 24,000 uph
Model LyoPharm
Shelf area 800 x 900 mm 1,200 x 1,200 mm 1,500 x 1,600 mm 1,500 x 2,000 mm
Shelf area (m²) 2.16 2.88 3.6 4.32 5.04 5.76 7.2 8.64 10.08 11.52 12.96 14.4 16.8 19.2 21.6 24 26.4 28.8 30 33 36 39 42 45
Nº of shelves 3 4 5 6 7 8 5 6 7 8 9 10 7 8 9 10 11 12 10 11 12 13 14 15
Shelves clearance (mm) 105 90 75 105 90 75 105 90 75 105 90 75 105 90 75 105 90 75 105 90 75 105 90 75
Chamber width 2,000 mm 2,300 mm 2,500 mm 2,500 mm
Chamber height 2,200 mm 2,500 mm 2,500 mm 2,900 mm 2,500 2,900 mm 3,400 mm 3,400 mm 3,600 mm
Condenser capacity (kg) 40 45 50 65 80 80 120 150 200 200 250 250 300 350 400 450 450 500 600 800
Trays 300 x 400 mm 300 x 400 mm 300 x 400 mm 300 x 400 mm
Condenser temperature -85 ºC -85 ºC -85 ºC -85 ºC
Shelves temperature range from -60ºC to +85ºC from -60ºC to +85ºC from -60ºC to +85ºC from -60ºC to +85ºC
