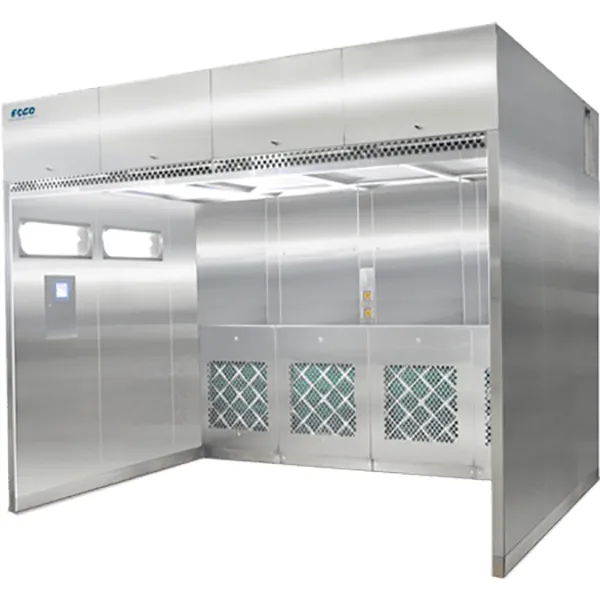

Esco Pharma Downflow Booth (DFB) is designed in compliance with international cGMP guidelines. It is fully equipped to provide operator, process, and/or product protection during open handling processes such as: weighing / dispensing or charging of powder into intermediate bulk container (IBC), bins or equivalent, and sampling in cGMP warehouses.

Standard Esco DFB has over 420 possible dimensional models with approximately 3.5 million possible system configurations. As an established manufacturer and supplier of sampling / dispensing booths, Esco Pharma can guarantee a standard solution to fit your specific process and facility requirements. Should a standard option not fit your requirements, Esco can offer a customized solution.

Pharmacon™ DFB Applications

  • Pharmaceutical
  • Cosmetics
  • Nutraceutical
  • Food
  • Biological
  • Animal
  • Robotic
  • Electronic

Easy-to-clean construction

Standard blowers used by Pharmacon™ DFB are closed loop ECM fans. These are energy-efficient blowers with the ability to automatically adjust fan speed in response to filter loading.

75 dBa is Possible

Noise level of ≤75 dBa can be achieved during factory testing; carried out in free field with clean filters and without sound foam.

Rapid Tool-less Filter Changing

The sampling booth is equipped with knife-edge gel sealed filters capable for a ‘rapid tool-less replacement’ within the booth.

ISO Class 5 Air Quality (at rest)

Esco Pharma DFB can achieve ISO Class 5 air quality (at rest conditions) with its wide array of standard filtration options. Client can specify the type based on their application (dust burden level).

Energy Efficient Lighting

Flush mounted energy efficient LED light fixtures in the booth side walls or ceiling ensures minimal glare and sufficient lighting in the work zone.

Improved Airflow Characteristics

LED lighting design placement ensures improved airflow regime with the minimum distance between the ceiling HEPA filters and diffusers.

Antimicrobial Powder Coating

For powder coated sampling / weighing booths, Esco Pharma utilizes the Isocide™ anti-microbial powder coating on all panels.

Principle

  • Air is delivered into the Operator’s Breathing Zone (OBZ) via the overhead HEPA filters, thus providing a clean and safe environment.
  • Potential dust clouds are suppressed and removed via the exhaust filtration system.
  • The operator carries out tasks in the high velocity zone at the rear of the Booth so that dangerous dusts will not rise into the breathing zone.
  • Product protection is assured by customising the downflow booth’s layout to suit the processes being carried out.
  • The Booth provides a stand-alone work place that doesn’t require the connection of external ventilation systems.

Models

Configurations

Options

Model





0.3 m Back Stack

0.6 m Back Stack

1.0 m Back Stack

Series

Option SC: Safe Change

NA

NA

✔



Option SCNB: Safe Change No-Bag

NA

NA

✔



Option ST: Standard

✔

✔

NA

Explosive Rating

Option SA : Safe Area

✔

✔

✔



Option ED: Explosive Dust

NA

✔

✔



Option EG: Explosive Gas

NA

✔

✔

Dimensional Option

Internal Height Options (m)

2.1, 2.5

2.1, 2.5

2.1, 2.5



External Width Options (m)

1.6, 1.8, 2.0, 2.4, 2.6, 2.8,

1.6, 1.8, 2.0, 2.4, 2.6, 2.8,

1.6, 1.8, 2.0, 2.4, 2.6, 2.8,





3.0, 3.2, 3.4, 3.6, 3.8, 4.0,

3.0, 3.2, 3.4, 3.6, 3.8, 4.0,

3.0, 3.2, 3.4, 3.6, 3.8, 4.0,





4.2, 4.4, 4.6, 4.8, 5.0

4.2, 4.4, 4.6, 4.8, 5.0

4.2, 4.4, 4.6, 4.8, 5.0



Internal Depth Options (m)

0.8, 1.2, 1.6

0.8, 1.2, 1.6, 2.0, 2.4

0.8, 1.2, 1.6, 2.0, 2.4, 2.8

Filter ArrangementOptions

Option A - G4,F8,H13,H14,PLF

NA

NA

✔



Option B - G4,F8,H13,H14

NA

NA

✔



Option C - G4,F8,H13,PLF

NA

NA

✔



Option D - G4,F8,H14

NA

✔

NA



Option E - Carbon,H14

✔

NA

NA



Option F - Front

✔

NA

NA

Fan / Filter Access

Option A - Internal to Booth

✔

✔

✔



Option B - External Area

NA

NA

✔

Airflow Arrangement

Option R - Recirculating

✔

✔

✔



Option S - Single Pass

NA

NA

✔

Bleed Position

Option T - Top

NA

NA

✔



Option F - Front

✔

✔

✔

M.O.C. Options

Option P: Ceiling Plenum

A: SS 316, B: SS 304,C: White P.C. EG Steel

A: SS 316, B: SS 304,C: White P.C. EG Steel

A: SS 316, B: SS 304,C: White P.C. EG Steel



Option Q: Side Panels, Rear Wall

A: SS 316, B: SS 304,C: White P.C. EG Steel

A: SS 316, B: SS 304,C: White P.C. EG Steel

A: SS 316, B: SS 304,C: White P.C. EG Steel



Option R: Filter Housings, Fan Boxes, Spacer (if present) & Transition

A: SS 316, B: SS 304,C: White P.C. EG Steel

A: SS 316, B: SS 304,C: White P.C. EG Steel

A: SS 316, B: SS 304,C: White P.C. EG Steel



Option S: Plinth

A: SS 316, B: SS 304,C: White P.C. EG Steel

A: SS 316, B: SS 304,C: White P.C. EG Steel

A: SS 316, B: SS 304,C: White P.C. EG Steel



Option T: Exhaust Grilles

A: SS 316, B: SS 304,C: White P.C. EG Steel

A: SS 316, B: SS 304,C: White P.C. EG Steel

A: SS 316, B: SS 304,C: White P.C. EG Steel



Option U: Exterior Side Panels

A: SS 316, B: SS 304,C: White P.C. EG Steel

A: SS 316, B: SS 304,C: White P.C. EG Steel

A: SS 316, B: SS 304,C: White P.C. EG Steel

PVC Curtains

Option T - Top

NA

NA

✔



Option F - Front

✔

✔

✔

LOP Location

Option R - Right Panel

✔

✔

✔



Option L - Left Panel

✔

✔

✔



Option F - Front Panel

✔

✔

✔

Supply Voltage

Option A - 220V-240V 50 Hz 1Ph

✔

NA

NA



Option B - 380V-400V 50 Hz 3 Ph

NA

✔

✔



Option C - 208 V 60 Hz 3 Ph

NA

✔

NA



Option D - 460V-480V 60 Hz 3 Ph

NA

✔

✔



Option E - 110V-120V 60 Hz 1Ph

✔

NA

NA

MCP Location Panel

Option OR - Onboard Right Access

✔

✔

✔



Option OL - Onboard Left Access

✔

✔

✔



Option OF - Onboard Front Access

✔

NA

NA



Option RM - Remote Mounted

✔

✔

✔

Control Type

PDI/ PB/ PDT/ PLC - Closed Loop

Allen Bradley

NA

✔

✔



PDI/ PB/ PDT/ PLC - Closed Loop

Siemens

NA

✔

✔



HMI/ PB/ PDT/ PLC - Closed Loop

Allen Bradley

NA

✔

✔



HMI/ PB/ PDT/ PLC - Closed Loop

Siemens

NA

✔

✔



Sentinel PDI/PDT - Open Loop

✔

NA

NA

Cooling Type

Option NIL - No Cooling

NA

✔

✔



Option CC - Chilled Water

NA

✔

✔



Option DX - Direct Expansion

NA

✔

✔



Option GL - Glycol

NA

✔

✔

Mechanical

Many standard offering to fit our client's needs, reducing project start-up and fabrication time resulting in better lead time and deliveries.



Modular design provides the option of increasing / decreasing booth size on-site without purchasing a new piece of equipment.

Controls

DFB control system is pre-programmed for all possible options making DFB easily adaptable to suit changing customer needs.



Control system offerings (Siemens, AB, Sentinel Controller) provide options for international compliance and true closed loop control

Sales

Automated DFB G2 sales tool allows instant quoting and drawing generation to greatly reduce the time between Request for Quote (RFQ) and quote submittal.

Accessories

Options

High Containment Screen (1 or 5D)

Material Handling

Benches; SST or Granite Tables, W x D, Fixed to Booth or Stand Alone

Vision Panel

Computer Monitor Mounting Screen

Sound Insulation

Airlock

Ethernet & RS-232 Pass Through Connections

UV Light Guards

Bumper Rails

Two Additional Electrical Outlets

Temperature and RH Local Display

Pass Through

Drum Tipper

Side Wall Fire Sprinkler Penetration
