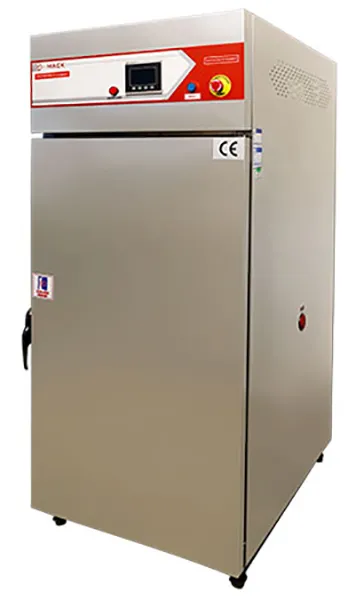

Photostability Chamber
For confirmatory studies, samples should be exposed to light providing an overall illumination of not less than 1.2 million lux hours and an integrated near ultraviolet energy of not less than 200 watt hours / square meter to allow direct comparison to be made between drug substance & drug product. MACK PHARMATECH’s Photostability Chambers are designed specifically to meet ICH & FDA requirements for Photostability testing. Near UV & visible light testing is Approved Approved performed simultaneously according to ICH Q1B option 2.
Technical Specification
Temperature Range:
20°C - 50°C
Accuracy:
+ 0.2 °C
Uniformity:
+ 1.0°C
Controller System:
PLC BASED CONTROL SYSTEM (Make: Allen Bradley)
CONSTRUCTION
Body & Door Insulation
Poly Urethane Foam (PUF)
Door
Glass Door from inside will be provided to See the samples without any disturbance & SS Door From outside
Chamber Illumination
Fluorescent Tubes are provided in the Chamber
Port Holes
60mm Dia. Porthole Is Provided In the Chamber for Validation
Heating System
S.S. Nichrome Wire Embedded ‘U’ Shaped Air Heater
Refrigeration System
Cooling System Consists Of Condenser & Compressor
Compressor
Hermetically Sealed Compressor Make - Emerson Copeland
Legs
Bullet feet with in-built screwing adjustment are specially
design for long life under heavy load
Standard Features:
Optional Accessories:
