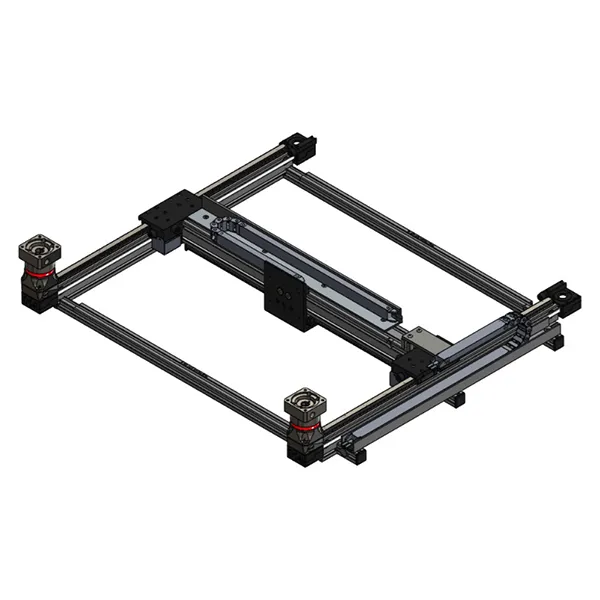

Linear H-Bot Gantry Robots MGS-HBG-25

Linear H-Bot Gantry Robots MGS-HBG-25

MGS-HBG-12 Options

Enter your configuration options below to submit a Request for a Quote or a CAD drawing:

X Axis Travel (mm)

•   250 500 750 1000 1250 1500 1750 2000 CUSTOM

Y Axis Travel (mm)

•   250 375 500 750 1000 CUSTOM

Notes:

• Gantry systems do not include T-slot sensors, Gearboxes or Motor mounting adaptors. By checking the Give Me Options for boxes you may specify your requirements in the request for quote entry fields.
• Gantry systems include cable track. Please refer to the Product Specification download document for the standard size.
• Motor sizing information is provided in the Product Specification download document.
• For Travel requirements over Standard values contact Macron Dynamics for assistance in developing a MacBUILT system.

Features:

• H-Bot configuration
• High speed, high performance 2 axis Cartesian robot
• Simple design: One single belt drives both axes
• Two fixed motor mounting locations
• Fixed motors reduce load, cable management and inertia requirements
• Positional repeatability +/- .05 mm
• Sealed linear profile rail and bearing guidance
• Low profile
• Mounting flexibility in either horizontal or vertical orientation

SPECIFICATIONS
