Arpac Brand LT Robotic Palletizer Model

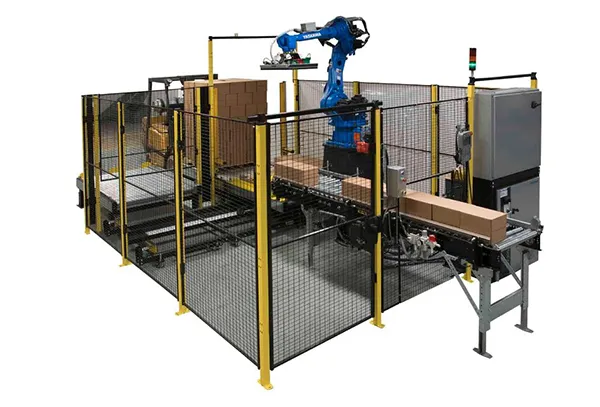

Arpac Brand LT Robotic Palletizer Model

Our Arpac Brand Robotic Palletizer LT Model is offered as a pre-engineered cell for a cost-effective and ready-made solution. Robotic palletizing offers consistent, predictable production. They improve quality, minimize rework, and can operate 24/7 – while handling heavy/bulky products and preventing injuries.

The cell includes a multi-axis robot and dual zone vacuum plate gripper to securely handle one or two cases at a time. A “smart” infeed conveyor singulates product for picking and automatic pallet handling discharges completed pallets and loads empties. We utilize Yaskawa Motoman’s Pallet Solver® software that dramatically simplifies product set-up and pallet pattern management. For enhanced safety, we include the Robotic Functional Safety Unit (FSU) along with a fully interlocked operator door and light curtain.

Features

Standard

• Robot: Motoman MPL80II 80Kg, 5 axis robot, with Riser
• 10′ smart inffed couting conveyor, accumulation roller with stop and acceleration
• Finished pallet offload conveyor
• Allen-Bradley power, control, and safety components throughout
• Allen-Bradley CompactLogix PLC
• Allen-Bradley PanelView Plus 7″ operator interface
• Pallets: 40” x 48” CHEP or GMA (or equivalent)
• Tooling: Vacuum plate, 23.6” x 15.7”, venturi driven
• Two-zone operation, two product detectors
• Robot Functional Safety Unit (FSU)
• NEMA 12 electrical cabinet
• 79” (2 meter) safety fence
• Interlocked access door
• Light curtain for pallet discharge

Options

• Slip/ layer sheet dispenser
• Automatic pallet dispenser
• Offline stretch wrapper
• Pallet Solver configuration software
• 1 or 2 up configuration
