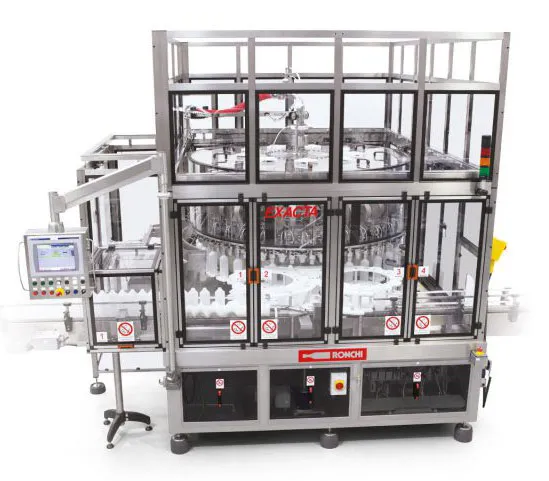

FILLING MACHINES
EXACTA Fillers: the most innovative and modern features offered to the filling industry for liquid or low and high-viscous products.
MAIN FEATURES DISTINGUISHING OUR EXACTA FILLERS:
Mechanical structure in 304 stainless steel
Parts in direct contact with the product fabricated of 316/L stainless steel
No bulk product tank installed on board the machine: it has been replaced by a simple delivery manifold that equates to a reduced volume of product inside the filler (12 litres on average)
Possibility of feeding the machine with product coming directly from the storing reservoirs
Closed circuit product feeding system aimed at eliminating any possibility of contamination of the product due to air or other atmospheric agents
Machine supplied with software and hardware package for the control of the product feeding pump (P.I.D.)
Efficient wash (CIP) and sterilization (SIP) achieved rapidly, without the need for spray balls
Wash-up and sterilizing operations fully automatically processed and programmable from the operator’s panel; the washing solution is recovered on a removable tray or through a closed circuit system
No product spillage during the filling process
Bottle format change-over operations extremely simple and fast. No need to use gripping system to hold the bottle
Control systems ensure the correct filling of every bottle, any out-of-tolerance filled bottle is rejected onto a parallel discharge conveyor
Flow-meters and, in general, all dosing operations are controlled and managed by a standard PLC installed aboard the machine
All motors are variable speed, controlled by inverters and are programmable from the operator’s HMI panel
