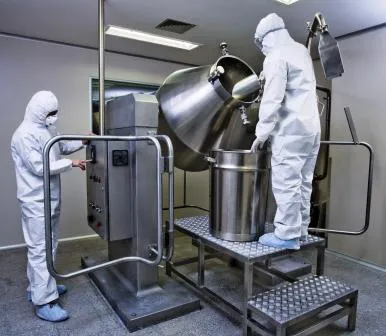

Double Cone Blenders

Double Cone Blenders

S2 Engineering Industries (S2) provide full turnkey sevice for Double Cone Benders from design and manufacture to assembly, installation and commissioning.

The S2 Engineering Double Cone Blenders (DCB) can also be supplied with an integral drying system.

As the blender rotates, given the conical shape of the vessel, the entire product batch is thoroughly mixed. This blending and inter-folding process maintains process media integrity and is therefore ideal for sensitive products. Thereafter the batch is easily discharged and the equipment cleaned given the conical shape of the vessel.

Design Features

cGMP equipment design and construction
Robust construction. Double pedestal supported (Single version is non-preferred but can be supplied for limited physical space applications)
All bearings of the blender are external to the blending vessel
Non-clogging design. Easy to clean
Direct Drive mechanism - S2 design does not have a conventional belt pulley, chain sprocket , spur gear other mechanical member for torque transmission or speed reduction. Hollow shaft gearbox is used.
Cantilever type support can be given for DCB models up to 1000 Litres thereby saving the space beneath the equipment and thereby isolating the serve area
Complete Automation with PLC based operation is possible.

Benefits

S2 Double Cone Blenders have the following benefits;

Minimum attrition of the product media
Conical vessel shape is ideal for discharging and cleaning operations.
As there are no scrapers, ploughs, scoops or vanes, material will not clog and prevent uniform blending
No possibility of bearing fluid cross contamination with product media
