Wash Stations

Wash Stations

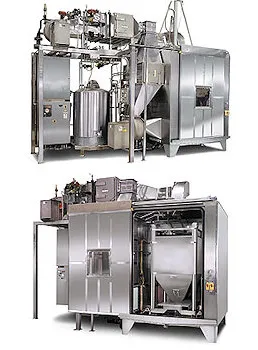

TOTE® Wash Stations are designed to wash and dry all sizes of TOTE® Containers effectively, efficiently and economically. With a minimum of operator involvement, TOTE® Wash Stations will eliminate the need for manual washing, which saves a significant amount of time and money. TOTE® Systems engineers will design a unit to meet your specific application.

Standard Features

Options



  • Spray ball on vertical actuator for internal bin wash



  • Strategically positioned spray nozzle bank for external bin wash



  • Horizontal opening solid door



  • Safety edge on doors



  • Safety interlocks



  • Internal cabinet E-Stop



  • Negative pressure air system for internal water and product containment



  • HEPA filtered air-drying system



  • Temperature controlled air-drying system



  • Detergent injection



  • Filtered air purge of water lines



  • Cabinet self-clean wash cycle



  • 304 SS construction



  • Allen Bradley PLC controls



  • TEFC motors



  • NEMA 4x enclosures



  • Operator Interface Terminal with recipe controlled washing



  • Remote operator panel



  • Manual/Maintenance override controls



  • All stainless steel surfaces chemically cleaned and passivated



  • Skid mounted utility group



  • Purified water final rinse



  • Pallet jack or fork lift loading of bin



  • Conveyor loading and unloading



  • Insulation and cladding of cabinet and door(s)



  • Multiple door configurations



  • Pass through design



  • Water recirculation system



  • Rinse and wash water holding and mixing tanks



  • Center or side drain discharge



  • Pump assisted drain



  • Bin valve actuator for manipulation of bin valve during wash



  • Automatic removal/ replacement of bin lid inside wash cabinet



  • HEPA filtered exhaust air



  • Complete electrical package to meet NEC area code classifications (Class I or II, Div 1 or 2, etc.) as required



  • Allen Bradley SLC-500 through 5/ 04 PLC’s



  • Remote I/O communications to distant electrical devices



  • 316 SS construction



  • Controlled heat wash and rinse water



  • Drain and water cooling system
