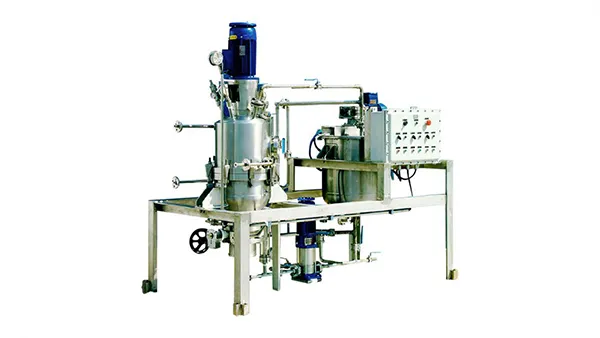

Leaf Filter - Clarfil FAP

Leaf Filter - Clarfil FAP

FEATURES

• Leaf filter
• Recommended for semi-continuous clarification of slurries containing low quantities of solid contaminants
• Includes: a cylindrical section welded to a lower conical section and flanged to an upper dished head; an internal hollow shaft supporting a series of equally spaced filter plates
• While separation takes place, shaft/filter plates assembly does not rotate. The slurry is injected from the bottom of the vessel. Once the vessel is full of slurry, pressure is applied at the top end and the solid - liquid separation takes place. While wet solid remains above each of the filter plates, filtrate flows across them, into the hollow shaft. Filtrate outlet is located in the conical section of the vessel.
• A Wet cake discharge is performed at the end of the batch filtration, thanks the centrifugal force generated by the rotation of the shaft/filter plates assembly. Product is pushed to the vessel side walls, slides to the lower conical section and finally to the discharge valve.
• Shaft is supported from the top
• In order to improve separation performance recirculation of filtrate can be performed and filter aids can be used.
• Twin filter configuration can be provided for continuous operation

OPTIONS

• Available filration surfaces from 0,4 to 60 sqm
• Stuffing box or mechanical seal
• Vessel heating jacket/half pipe in order to perform slurry temperature control and/or pre - drying of wet cake
• Skid mounting with all necessary accessories, heating & cooling systems
• PLC automation systems
• Material in contact with the product: 316 L Stainless Steel, SAF 2205, Uranus B6, Alloy C 22, Titanium and many more
