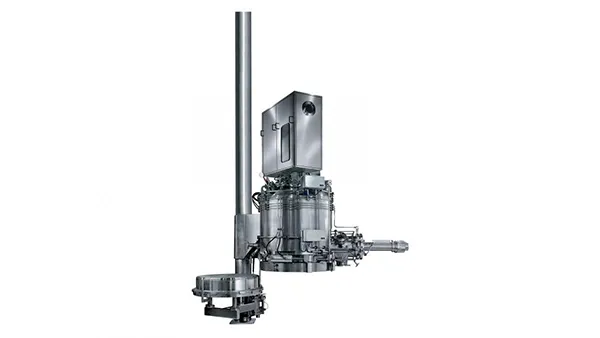

Nutsche Filter - Filtro FPP

Nutsche Filter - Filtro FPP

FEATURES

Nutsche pressure filterRecommended for pressure filtration, "re-slurry" washing, smoothing & displacement washing and product dischargeIncludes:

• Removable flat bottom flanged to the cylindrical vessel
• Filter media,
• Agitator designed with special teeth able to optimize the smoothing of the cake and product discharge without incurring any mechanical damage to the product
• Double mechanical seal
• Side mounted discharge port
• CIP washing systems for all the internal contact surfaces
• Validated CIP

OPTIONS

• Available with filter surface areas up to 16 m2
• Agitator with straight or "S" shaped paddles, in two or three-armed designs
• Bottom flange with C-clamps or hydraulic bayonet closure
• Mono or multilayer sintered filter media
• Double mechanical seal wet, dry or "lift-off"
• Side mounted discharge port with an O-ring, metal-to-metal or "reverse" seal
• Available in chemical, pharmaceutical and sterile versions
• Heating & cooling and inerting systems
• PLC automation systems
• Material in contact with the product: 316 L Stainless Steel, SAF 2205, Uranus B6, Alloy C 22, Titanium and many more
