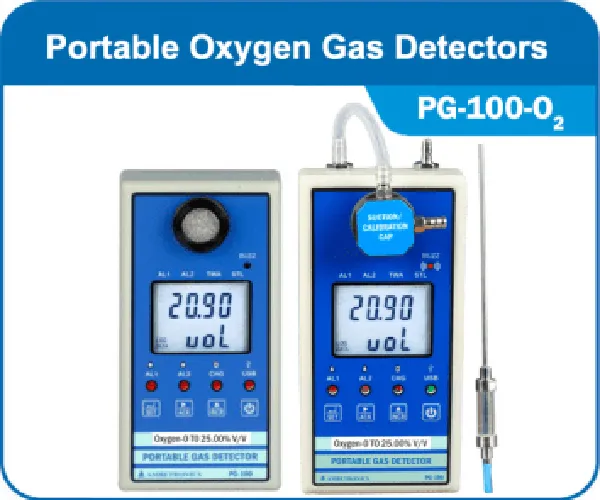

Portable Oxygen Gas Detector

Portable Oxygen Gas Detector

Description About Portable Oxygen Gas Detectors: -

The Portable Oxygen Gas Detectors can detect smallest leak of Oxygen gas with display of gas concentrations on LCD display.  These detectors have the feature of easy handling and programming with 3 keys and power supply with rechargeable batteries and on/ off option. They have password protected function menu, plug-in sensor and built-in audio buzzer. These Portable Gas Detectors also have optional data logging facility with 50000 records which are visible in ASCII format while downloading to PC via USB interface.

Features: -

• Portable gas leak detector detects smallest leak on service line and joints
• Digital display of Gas Concentration on the LCD display with backlight
• Plug-in Sensor provides a full year of warranted protection against hazardous gases
• Gas concentration display in %V/V or %LEL or PPM
• Two set points () configurable TWA STEL alarm AL1, AL2 as High / Low with buzzer & vibrator alerts & LED indications
• Optional data logging facility with 50000 records & visible in ASCII format while downloading to PC via USB interface
• Battery status indication on the LCD display with battery charging LED indication and BAT low indication with Buzzer.
• Over / Open Indication
• Password protected function menu
• Power supply with rechargeable battery
• Small, compact and light-weight
• Toxic sensor test option.
• Calibration due indication and alert
• Ambient monitoring
• Software calibration totally by using front keys

Technical Specifications: -

• Sensors: Electrochemical Sensor Technology
• Range/Resolution: 0-25 % V/V / 0.01
• Method: Diffusion / Suction
• Display: LCD with settable backlight
• Set Point: Two independent set points, AL1 & AL2 with LED indication facility only
• Setting : Setting by 3 keys on front panel i.e. (SET, SHIFT / ACK, INCR); Integrated Buzzer & Vibrator for Alarm Violation
• Accuracy: ± 2% of the full scale with sensor accuracy
• Power Supply: Li-Polymer, Rechargeable Battery with charger 8 hours of runtime on full charge
• Operating Temp: 0 to 50°C
• Storage Temp: 0 to 60°C
• Humidity: Below 95% Rh, non-condensing
• Material: ABS Plastic
• Size :140mm(L) x 70mm(W) x 30mm(H)
• Weight: 300 grams max

Applications Of Portable Oxygen Gas Detectors: -

• Refineries & Petrochemical plant including offshore drilling and plant shutdowns
• Waste water treatment plants
• Steel mills
• Pulp & Paper Industry
• Personal Monitoring
• Leak Detection
• Incoming Cylinder inspection
• Emergency response
• Equipment maintenance
• Pre-entry check quality control
• Process or emission gas analysis
