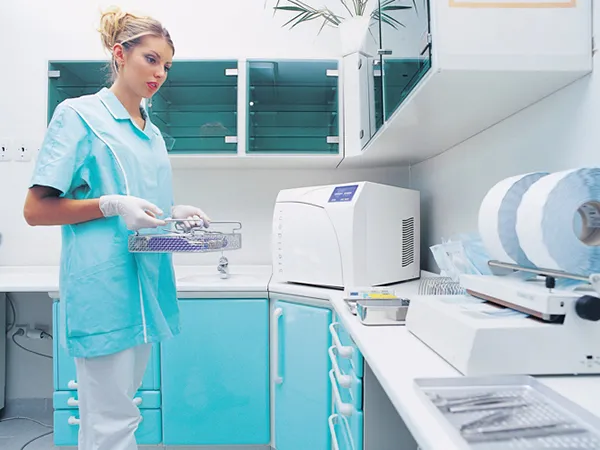

STERIDENT® a steam sterilizer with a chamber volume of 15 liters, represents a completely new generation of small steam sterilizers that comply, without exception, with the requirements of standards (EN 13060 for Class B) and operating staff. STERIDENT® sterilizers are suitable for the sterilization of all instruments, materials, textile, rubber and plastics that are meant to be sterilized by steam when it comes to health services, veterinary clinics and laboratories. Thanks to how small they are, their top quality and wide range of use, STERIDENT® units are suitable for use especially in the field of dentistry, where top quality, speed, reliability and the highest level of sterilization safety are required.
Basic features
- Small steam sterilizer
- Quick, powerful, smart and exceptional
- Saves space and consumption of media
- Fractional multiple evacuation
- Automatic door control
- Touch display offers top comfort control of the unit and provides comprehensive information about each phase of the on-going process
- A graphic printer or computer can be connected to the unit to print, assess and archive a detailed report on each sterilization cycle (RS 232 interface)
- Short delivery terms
Basic technical data
- Chamber volume: 15 liters
- Temperature range: From 105°C to 134°C
- Built-in separate full-scope steam generator
- Powerful air pump – perfect drying
- Two microprocessor control system (Master-Slave)
- Touch display for comfort control
- 10 user programs
- Separate control and cycle registration system
- Autonomous design or feeding by de-mineralized water from water works firmly connected to a water distribution network
- Separate distilled and used water tanks
- Enables testing and validation according to EN ISO 17665-1:06
Basic design elements
The pressure chamber, door panel and steam generator are made out of first-rate stainless steel (ČSN 17 347, DIN 1.4571, AISI 316 Ti). In order to save energy and minimize heat radiation, the chamber is perfectly insulated with ecological insulating material. Sensors, valves, the powerful air pump and other important design elements are manufactured by leading world producers. The unit is fitted with a pump to fill the distilled water supply tank and it does not need to be connected to water discharge piping.
Right of change of construction and design reserved.
Safety Equipment
- common two-processor management and control system of sterilization
- mechanic - electric system of door blocking with micro switches
- automatic transition to safe conditions in case of program interruption
- error warning messages
- antibacterial filter reliably provides quality of chamber aeration after the drying phase in case of underpressure
- safety valve for protection against max. allowed overpressure exceeding
- thermal fuse for protection against inadmissible overheating of electric heating of the sterilization chamber jacket
- thermal fuse for protection against inadmissible steam generator operation without water
