GMP STEAM-AIR MIXTURE STERILIZERS

Overview

Fast & Effective Terminal Sterilization of Packaged Pharmaceuticals

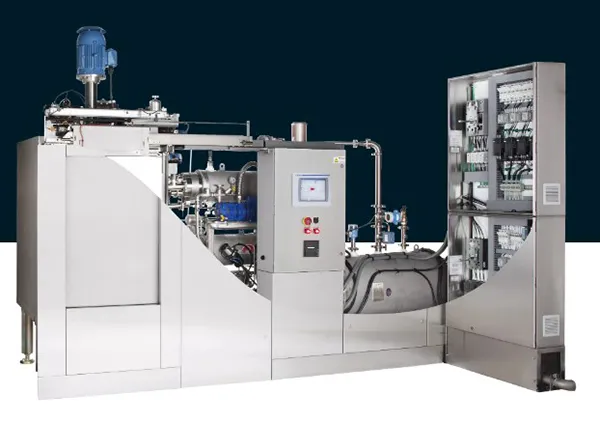

Ventipro steam-air mixture sterilizers offer faster heating and cooling times than conventional sterilizers, while also providing safe, and effective terminal sterilization of liquids in open, sealed, or heat-sensitive containers. Pure steam is utilized inside the chamber for heating the liquids and over-pressure filtered air is injected into the chamber to compensate for the rising temperature and pressure that builds inside the liquid container. Internal fans mix the chamber steam and air to ensure there are no cold pockets and to provide a uniform temperature distribution across the chamber. Rapid heating and cooling is achieved utilizing convection principles. At the end of the cycle, the product emerges dry and ready for labeling.

• US FDA cGMP compliant

• Extensive validation documentation

• 316L stainless steel chambers with complete envelope 316L stainless steel jacket

• Allen-Bradley or Siemens PLC control system

• Temperature distribution better than +/- 0.5°C

• Insulated chamber and piping reduces utility consumption

• Automatic pneumatic driven precision sliding doors – chamber doors are solid 316L stainless steel and secured on all four sides

• Lubricant free door gaskets

• 21 CFR part 11 compliance for secure electronic data storage
