Protrix

Protrix

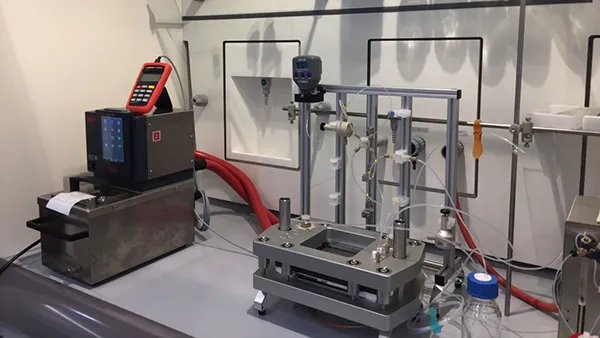

Protrix is a ceramic, metal-free Flow Reactor used for process development & small-scale production. It's unrivalled chemical compatibility & heat exchange performance allows process intensification & reaction control. Protrix enables the User to develop flow processes at the lab-scale, later transitioning to Plantrix for larger volume material production.

Protrix is a modular, ceramic Flow Reactor for process development & small-scale production.  Fabrication from diffusion bonded 3MTM silicon carbide & integrated heat exchange gives Protrix unrivalled chemical compatibility & process control for challenging chemical applications.

Employing standard 1/4-28 UNF process ports & M16x1 service connectors, Protrix can be used with existing pumps & thermostats or supplied as a total system on request.

Examples of User applications:

•    Process intensification of highly corrosive media at elevated T/p
•    Definition of process control strategies & parameter influence on CQA's
•    Proof of concept ahead of scale-up in Plantrix MR555
•    Processes include nitrations, cyanations, lithiations, diazotisations & halogenations

SPECIFICATIONS

•    Flow rate:  0.2-20 ml/min (up to 1.2 kg/h)
•    Reactor volume:  1 to 13.5 ml
•    Wetted materials:  SiC, PTFE & FFKM
•    Dimensions:  350 (W) x 200 (D) x 250 mm (H)
