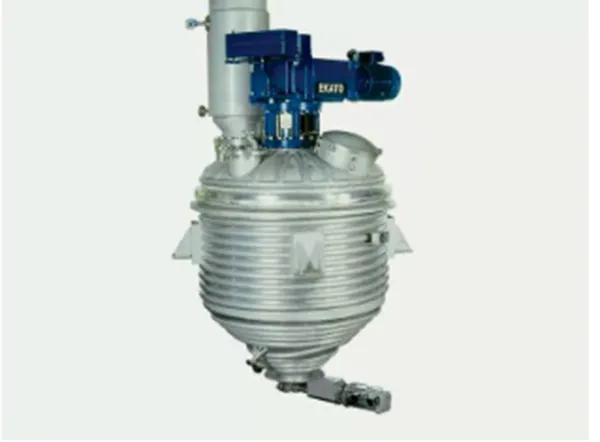

Vacuum Dryer – SOLIDMIX
Vacuum Dryer – SOLIDMIX
Product Details
SOLIDMIX-VPT2500
For free-flowing products, the SOLIDS-PARAVISC impeller is used in the SOLIDMIX VST dryer series. The ISOPAS impeller was designed for processing pasty, poorly flowing media. It is implemented in the EKATO SOLIDMIX VPT dryers. The modular system can also be specifically tailored to customer requirements. Our experienced experts help to provide the vacuum dryer with the appropriate process technology solution. The following basic operations are available: drying, mixing, chemical reactions, coating, granulating, heating, cooling, moistening, and many more. The EKATO SOLIDMIX vacuum dryer typically has the following system components: The EKATO SOLIDMIX systems have the same design – from laboratory to production scale. Depending on the type of installation, 3 – 32,000 l can be used.
- Mixing impeller (patented EKATO ISOPAS or EKATO SOLIDS-PARAVISC)
- ASME, PED, or SELO vacuum and pressure vessel
- Vacuum system
- Solvent recovery system
- Automation
- Heating and cooling system
- Cleaning in place (CIP) cleaning system
Features
- Agitators designed for minimum power input with maximum vertical mixing (energy efficiency)
- Gentle vertical mixing with minimal shear
- Homogeneous temperature distribution and heat transfer in the loose bulk
- Dryers optimized for maximum discharge during emptying
Vertical Dryer for Solids Type SOLIDMIX VST (100 L to 32,000 L)
SOLIDMIX-VST2500
The SOLIDMIX VST vacuum dryer with the PARAVISC impeller for solids is particularly suitable for drying free-flowing goods and bulk goods. Because of the free-overhung shaft, no bearings are in contact with this product. This offers great advantages in the processing of fine chemicals, pharmaceutical products, or foodstuffs. In addition, the small wall clearance between the impeller and the vessel wall prevents product residues. The conical bottom ensures that only the smallest amounts of residue remain in the dryer.
Optionally for the SOLIDMIX VST various system components can be offered. For example:
- Filter for separating the exhaust vapors
- Heatable agitator shaft
- Sampling ports
- Temperature measurement
- CIP-systems
- ATEX versions from Zone 0 to Zone 2
