Clean Air Station Models

Clean Air Station Models

APPLICATION

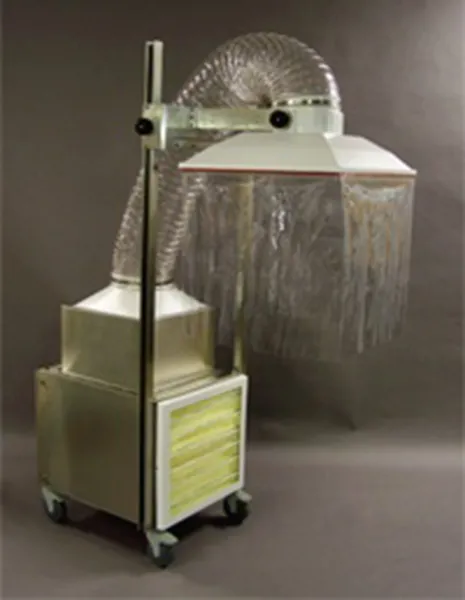

These models provide the user with a class 100 positive pressure environment wherever localized clean air is required.  Typical applications are raw material sampling and aseptic connections for bioreactors and fermenters.

The blower box contains a deep media HEPA filter that meets Federal Standard 209 (0.3 microns @ 99.99% efficiency).  The swivel output head (provides vertical or horizontal airflow), provided with either a 2’ x 2’ or 2’ x 4’ size contains a membrane diffuser to provide uniform airflow and includes a detachable clear vinyl work area curtain that is attached using an airtight method.
FEATURES

• O.3 micron HEPA Filter
• Class 100 (ISO 14644-1 Class 5) Air
• Detachable Vinyl Curtain
• Adjustable Air Speed
• Adjustable Height and Swivel Output Head
• 95% Efficient Bag Pre-filter
• Convertible 2’ x 2’ or 2’ x 4’ Output Head

OPTIONS

• Stainless Steel
• Explosion Proof
• 2’ x 2’ or 2’ x 4’ Work Tray
• Battery Power
