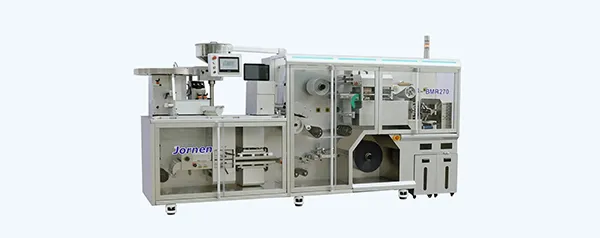

Blister Machine BMR270
Blister Machine BMR270
> High-speed Blister Packaging Machine, fully servo regulated, the culmination of our more than 30 years of professional experience.> The main structure has a vertical partition to separate the drive section (rear) from the operating zones (front).> GMP-compliant cantilever (balcony type) layout for easy, pharmaceutically compliant cleaning.> Accommodates forming material reels of up to 600mm in diameter and a waste material trimming cutter, which allows production to run uninterrupted for approximately 90 minutes, therefore, reducing the material replacement frequency.> Equipped with integrated forming material splicer to enhance efficiency during material replacement.> The upper and lower plates adopt a contact heating method that significantly reduces the forming temperature. Thus the shrinkage, deforming of packaging material and power consumption are minimized.> Equipped with format locking, positioning system, and quick-fitting, tool-free design, achieves extremely straightforward format changeover.> Larger area of forming station, rotary sealing station, high speed of embossing and punching station, suitable for mass batch production.> In the sealing station, when the machine stops, the sealing roller can rise up automatically, to prevent hot air from getting into the blister pockets, so that medicine effectiveness is preserved.> Using a quick-fitting design enables the replacement of lidding material easily within 10 seconds.> Equipped with an integrated lidding material splicer to enhance efficiency during material replacement.> Adopts transverse cutter which easily collects its blister card and rejects faulty blister.> Window frame type no-waste-trimming cutter saves packaging materials (option).> The blister indexing length can be set freely through Touch Screen User Interface, which reduces the time for a format changeover.> All the main parts are made of premium stainless steel and alu-alloy material and machined by advanced high-precision CNC tooling machines.> Adopts digital position indicator achieves straightforward adjustment.> Ergonomic design sliding door assure safe and convenient operation.
Main Technical Parameters
Max. Speed: 200 punches/min.Max. Output: 600 blisters/min. (alu/pvc blister size 57×80mm)Max. Forming Area: 260×250mmMax Forming Depth: 14mm (alu-pvc), 12mm (alu-alu)Material: Max. width 270mmMachine Power: 20kwMachine Dimension: 4600X1200X2200mmMachine Weight: 3000Kg
