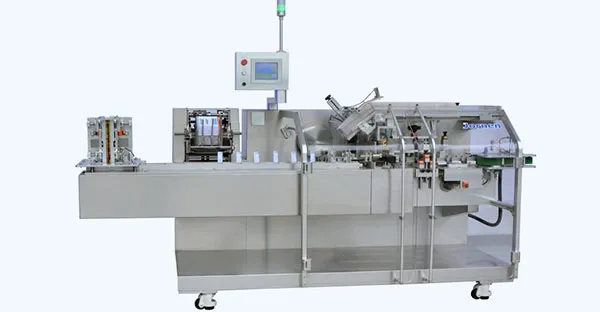

Cartoning Machine ZH120

The characteristics of Cartoner ZH120:
Automatic intermittent motion horizontal cartoning machine, very compact and reliable. The working area is in a cantilever (balcony type) layout. The main structure has a vertical partition to separate the drive section (rear) from the operating zones (front). It is suitable for packaging blisters, bottles, vials, pillow packs, etc.
The machine runs stable and provides easy changeover for different sizes of cartons.
It can fold leaflets, open cartons, insert the products and leaflets into cartons, emboss, tuck-in, or hot-melt closures and automatically discharge cartons.
The machine is equipped with a series of sensors and automatic protective devices to assure the machine runs safely and effectively.
It can connect with Blister Machine, Pillow Pack Machine, Overwrapper, etc., to form a Production Packaging Line.
Main units of this Cartoner:
Gear Device:
The gear drives the carton conveyor chain and blister conveyor chain running in intermittent motion.
Carton Conveyor Chain:
The carton conveyor chain is used to transfer opened cartons to every station, which can automatically complete the actions of inserting blister cards and leaflets into cartons, embossing, closing of cartons, discharging cartons.
Leaflet Conveyor Chain:
The leaflet conveyor chain is applied to send folded leaflets to the blister feeding station then the leaflets and the blister cards are inserted into cartons together.
Carton pick-up device:
The carton pick-up with two sets of suction cups can suck the cartons from the carton magazine, open the carton, place it on the carton conveyor.
The Leaflet Folding Device:
The leaflet folding device can make the leaflet fold one to four folds according to the customer’s demand.
Inserter device:
The inserter device can push the blister cards into the carton in intermittent motion.
Carton magazine device:
Adopt a long carton magazine for approximately 1000 cartons.
