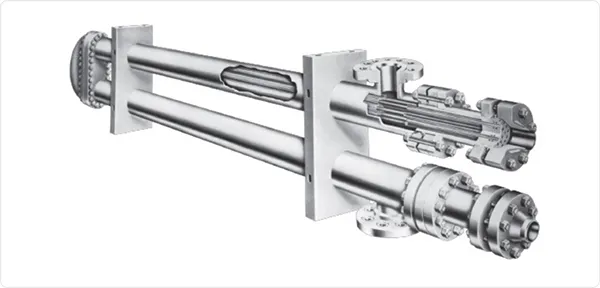

Hairpins Double Pipe and Multitube Heat Exchangers
HairpinsDouble Pipe and Multitube Heat Exchangers
Koch Heat Transfer hairpins are the industry standard for efficient performance and proven reliability. Backed by more than 300 years of combined engineering and manufacturing experience, our innovative designs and unique closures are a key element of more economical designs that offer ongoing operational savings. Learn more about putting the industry-leading expertise of Koch Heat Transfer and the performance advantages of our hairpins to work for you.
Benefits
Cost Effective
In many applications, performance can be achieved by a single hairpin as opposed to multiple Shell & Tube exchangers, resulting in lower capital costs, as well as future maintenance.
Cyclic or Shock Service
Large-radius U-bends and all terminal connections located at the same end allows for more extreme thermal expansion without the need for an expansion joint.
Durable Baffle Cage
Baffles are welded to tie rods without “sleeves” or internal nuts.
Extreme Terminal Temperature Differential
Independent-tube sheets and closure components eliminate differential thermal expansion across a single-tube sheet design, as is typically encountered with conventional Shell & Tube.
High Pressure
Our unique closure technology allows for pressures exceeding 10,000 psi.
Large-Radius U-Bends
Easy to clean, and eliminates the need for expansion joints or packed joints.
Moveable Support Brackets
Allow shell expansion and contraction; eliminate sliding plates; slotted on all four sides for flexible installation and future additions.
Separate Tube Sheets
Handles high temperature differences and cycling more effectively.
Small Footprint
Due to the geometry of hairpins, the equipment takes up less space relative to the Shell & Tube alternative.
Temperature Cross
Ideal when a temperature cross exists, or a close temperature approach is desired due to its single-pass configuration that allows for true counter current flow.
Common Applications
- Fuel gas heaters
- Lean - rich glycol exchangers
- Lean - rich amine exchangers
- Lean - rich CO2
- Gas coolers
- Well stream heaters
- Intercoolers
- Aftercoolers
- Heat Affluent Exchangers
