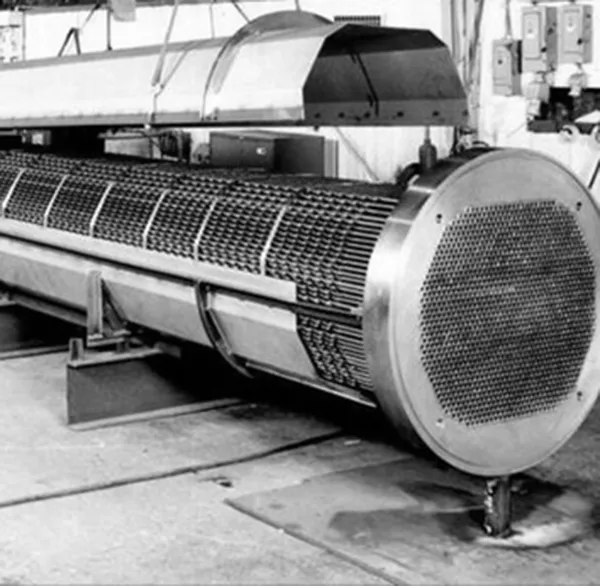

The innovative design of our TWISTED TUBE® Heat Exchangers delivers more efficient and more reliable performance than conventional shell and tube heat exchangers. TWISTED TUBE® Heat Exchanger Technology features a revolutionary bundle construction that increases heat transfer and reduces pressure drops while increasing heat transfer surface area and eliminating damaging vibration. Additionally, dead spots are eliminated where fouling can accumulate and reduce effective heat transfer surface area. See what a difference TWISTED TUBE® Heat Exchanger Technology can make in your operations.
Plug-and-Play Solutions
The TWISTED TUBE® Bundle is designed as an easy retrofit solution for your existing shell and tube layout. No additional piping changes are necessary. It’s as simple as taking your old less efficient tube bundle and replacing it with a better solution. The difference is that TWISTED TUBE® Heat Exchangers can be more efficient and reliable.
Our innovative design eliminates baffles and damaging tube vibration. The uniquely shaped tubes are arranged on a triangular pattern that provide adjacent support as fluid swirls freely alongside. Gaps between the tubes make it easier to clean on the shell side. Rounded ends allow for the use of conventional tube-to-tube sheet joints.
Benefits
Elimination of Damage-Induced Vibration
Due to the generally longitudinal flow pattern of the shell-side fluid and the multi-point support structure of the bundle, the potential for flow-induced damaging vibration is mitigated.
Increased Heat Transfer
Allowing for more surface area in a given shell size, the throughput can potentially be increased based on the application. Increasing the tube-side heat transfer coefficient can provide increased heat transfer, based on the application.
Potential Fouling Mitigatio
The elimination of shell-side baffles eliminates dead spots where sediment can accumulate and cover heat transfer surface area.
The swirl flow on the tube side increases the shear velocity, ultimately decreasing the fluid boundary layer.
Reduced NOx and Emissions
TWISTED TUBE® Heat Exchanger tube bundles can enhance performance and increase the outlet temperatures of your crude oil or feed upstream of a fired heater, reducing energy consumption and NOx emissions from those fired heaters.
Reduced Pressure Drops
The longitudinal flow allows for a lower relative pressure drop when compared to segmental baffle designs.
Common Applications
Crude preheats
Feed/effluent for:
Reformer (CCR and semi-regeneration)
Hydrotreater
Hydrocracker
Alkylation
Overhead condensers
Reboilers (kettle and J-Shell)
Lean/rich amine
Compressor interstage coolers
Texas Towers
Hydrotreating/Reforming
KBR Rose Exchangers
