Digital Force Gauges
Digital force gauges
Chatillon digital force gauges are user friendly, designed with both handheld use and test stand mounting options. Chatillon mechanical force gauges offer high precision compression (push) & tensile (pull) testing at an extremely economical cost on a wide variety of applications.

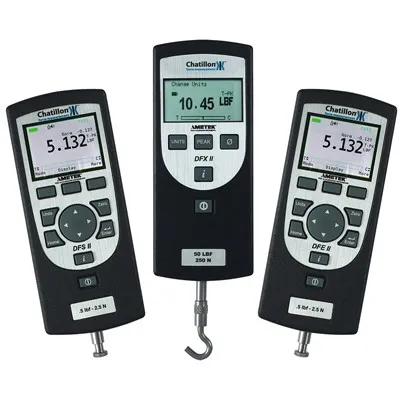

Choose from either the DFE II, DFs II or DFX II:
DFE II – From 2 lbf to 500 lbf / 10 N to 2500 N
The DFE II Series is a compact, easy-to-use force gauge, designed for economy applications without compromising functionality. The DFE II features an integral load cell with a measurement accuracy better than ±0.25% FS, and has analog, USB and RS232 serial communication.
DFS II – From 0.5 to 500 lbf / 2.5 to 2500 N
The DFS II Series offers the best price-performance and the most popular digital force gauge. This compact, easy-to-use force gauge is designed for basic and complex applications. The DFS II may be equipped with integral load cells or smart remote sensors for load measurement or torque measurement. Measurement accuracy is better than 0.1% full scale in integral load cell or dedicated remote models. Labquip stocks this model and can offer you next day delivery for Ireland and Northern Ireland.
DFX II – Four models to choose from 10 to 200 lbf / 50 to 1000 N
The DFX II Series is a cost effective digital force gauge, ideal for applications where the user is interested in basic peak force measurement such as the force necessary to push a button. This digital force gauge is available in 10 lbf, 50 lbf, 100 lbf and 200 lbf.
Attached to an MT test stand, this digital force gauge can measure the maximum tensile force applied before a cap comes off a spray can. The DFX II can measure the force necessary to open a door with the optional pistol grip attachment.
