Matcon Group

Flexibatch Micro Module

Flexibatch Micro Module (Micro Filling Module)

• Automatically dose micro & minor ingredients quickly and accurately.
• An ideal way to reduce complexity and manpower requirements by decreasing the number of operator weighments required for each recipe batch.

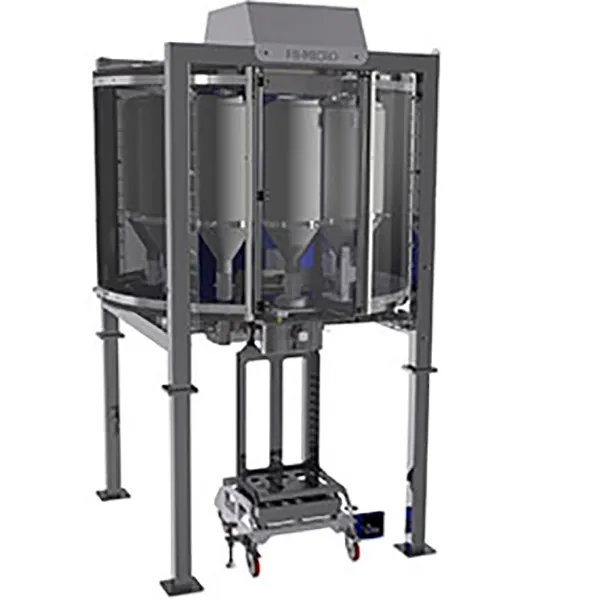

• The Flexibatch Micro system comprises a number of ingredient containers on a carousel, which rotates and dispenses the desired amount of product into the batch container.

Product Description

Improve Recipe Formulation

Multiple raw ingredients are stored in easily detachable polyethylene bottles held on a rotating carousel. Automatically dispensing micro & minor ingredients from a pre-programmed recipe.

The module comprises:

• 10 bottle carousel
• Integral auger dosing for accurate dispensing
• Interchangeable bottles for fast changeovers
• Automatic recipe control
• Doses typically up to 10kg with 4g accuracy
• Additional ingredient bottles optional

Advantages

Remove bottlenecks in the batch processing operation

Formulate the micro & minor ingredients off-line. Lessen the risk of human error in weighing by using automation.

• Repeatable, high accuracy dosing
• Reduced number of weighments
• Fast changeovers
• Easy clean bottle design.

Product Applications

Focus on the value-adding tasks

• The system allows operators to focus on more challenging and rewarding tasks and remove risk for human errors - ultimately securing quality and brand reputation.
• Originally designed for the Bakery industry, this micro dosing module now has a wider portfolio of uses and can be deployed for any minor or micro ingredients.
