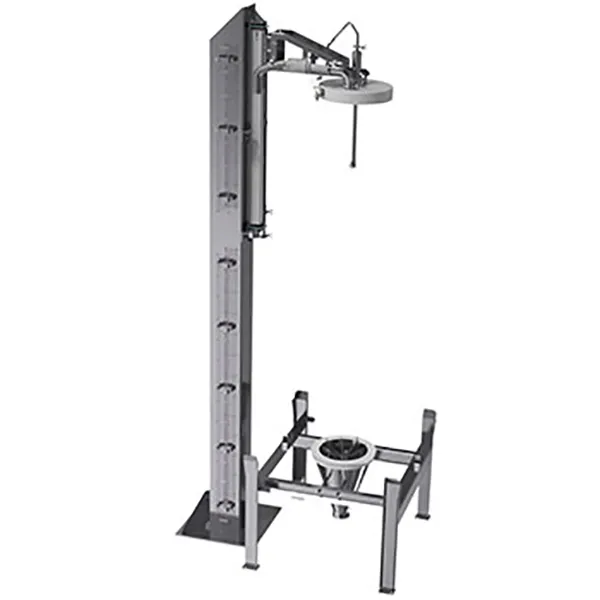

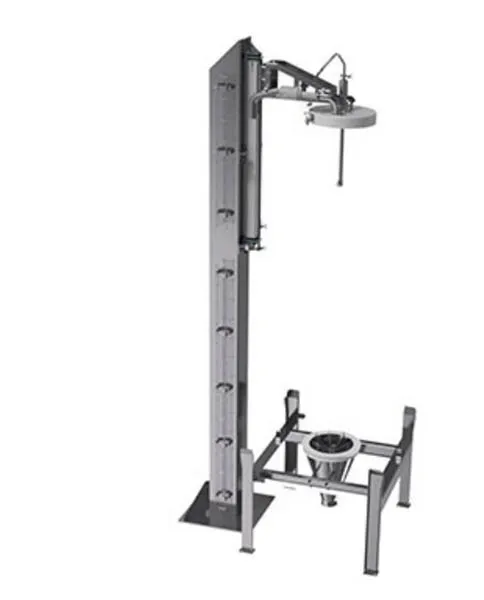

Wet Wash Module

Wet Wash Module

Providing a comprehensive internal wash and dry of the IBC without the need to remove the Cone Valve.

A high-pressure spray lance distributes water in a controlled and repeatable pattern on all of the internal surfaces of the IBC to remove any powder residue.

The drainage frame includes a cone lifter for automatic cleaning of the outlet with the Cone Valve in situ.

Wet Wash Module

Wet Wash Module

Providing a comprehensive internal wash and dry of the IBC without the need to remove the Cone Valve.

A high-pressure spray lance distributes water in a controlled and repeatable pattern on all of the internal surfaces of the IBC to remove any powder residue.

The drainage frame includes a cone lifter for automatic cleaning of the outlet with the Cone Valve in situ.

Features at a glance

• Automatic operation with high-pressure spray lance.
• Automatic lid placement.
• Drainage frame incorporating a cone lifter.
• Optional service skid with heater & chemical dosing.
• Repeatable & validatable process.

Significantly reduce your cleaning downtime

• Typical wash and dry cycle only 20-30 minutes (product dependent).
• High manufacturing efficiency rates as IBCs are cleaned off-line without causing mixer or manufacturing line down-time.
• Simple IBC design enables easy cleaning of the internal surfaces with no risk of cross-contamination.
• Safe, repeatable wash sequences which can be validated for Regulatory Authorities.
• Effective IBC cleaning.
