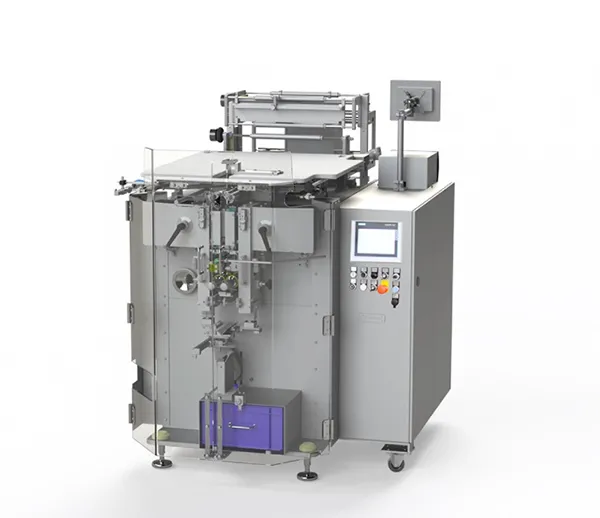

Sachet packaging machines MP2
Sachet packaging machines MP2
DESCRIPTION OF OPERATION:
The MP2 is a vertically operating, fully automatic forming-, filling- and sealing machine for the production of three- and four-side sealed sachets.
The machine processes flexible, laminated foils from one reel or alternatively from two reels. In a sequence of single operations, the film is drawn off from the reel, cut lengthwise in the middle, then the two halves are guided face to face by a deviation triangle and sealed in U-form.
The ready-made empty sachet is filled then, conveyed vertically by one sachet length, closed at the top and cut off.
At the same time, a photocell control assures the exact positioning of the print.
The MP2 is a universal basic machine for the bag production. In combination with different product supply systems and dosing units, a wide range of products can be packed.
TECHNICAL DETAILS
- Constructed in the building block system
- Compact small size design
- PLC - control Siemens S7
- Robust long-life construction
- Balcony construction according to GMP
- Product saving due to short drop distance
- Sealing station 90° moveable to both sides
- Quick format change
- Easy to operate
- Very low noise-level
- High sealing pressure, adjustable by hydraulic cylinder
- Easy to maintain - low maintance
- Powerful, high output
- Excellent cost/performance ratio
TECHNICAL DATA:
|
Sachet width standard:
|
15-160 mm
|
|
Special sachet width
|
up to 240 mm
|
|
Sachet length
|
15-200 mm
|
|
Filling volume per sachet
|
0,2-250 ml
|
|
Capacity cycles/min*
|
up to100
|
|
Output sachet/min.
|
up to 100 per lane
|
|
Number of lanes
|
1 - 6
|
|
Diameter of film reel
|
max. 500 mm
|
|
Width of film reel
|
max. 520 mm
|
|
Diameter of film reel core
|
70/76 mm
|
|
Sealing pressure
|
up to 20000 N
|
|
Air connection
|
6 bar
|
|
Wattage
|
up to. 4 KW
|
|
Voltage supply standard
|
400V/3/N/PE/50Hz
|
|
Protection class
|
IP 54
|
|
Weight
|
approx.1000 kg
|
|
Colour standard
|
silver
|
|
Packaging material
|
all current, heat-sealable composite foils
|
*Depending on product, filling quantity and packaging material
OPTIONS:
- Allen Bradley PLC and HMI
- Special electric voltage / transformer
- Punching device for tear notch or tearing groove
- Coding cold embossing in sealing seam
- Coding hot embossing, Thermo, Ink-Jet
- Contour punching, European standard perforation
- Automatic foil edge control
- Chain packages
- Gas flushing device
- Dust absorption system
- Bag collecting and bag transfer devices
- Subsequent packaging semi or fully automatic
- Product supply systems
- Pharmaceutical construction
