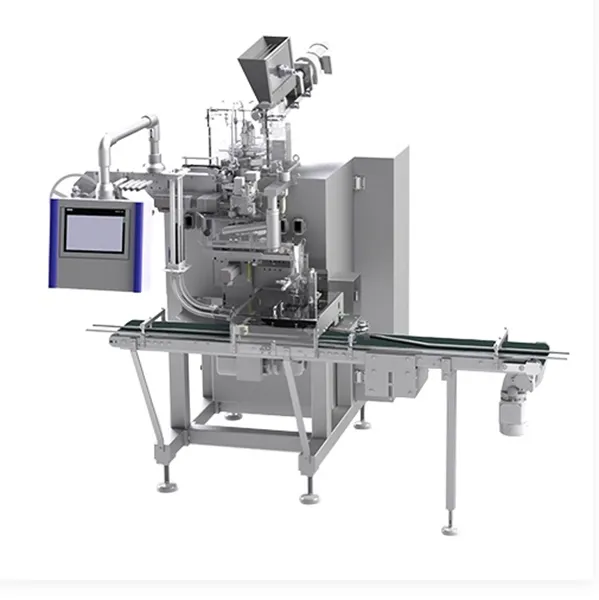

SB18-1T
DESCRIPTION OF OPERATION
The packaging machine SB18-1T is a vertically operating, fully automatic forming, filling and sealing machine for the production of very small tubular bags, the so called “Stickpacks”.
The machine processes different types of fleece from the flat foil reel.
In a sequence of single operations, the film is drawn off from the reel, formed to a tube during transportation and sealed lengthwise,filled then, sealed transversally and cut off.
The SB18-1T is conceived as a 1-lane machine.
TECHNICAL DATA:
Bag with standard
12 / 14 / 18 mm
Special bag width
on request
Bag length
min. 30 mm max. 38 mm
Special bag length
up to 41 mm
Filling volume per bag
approx. 0,2 - 1,2 g adjustable
Output bags/min
up to 450/min
Number of Lanes
1
Diameter of film reel
max. 400 mm
Diameter of film reel core
70/76 mm
Sealing pressure
up to 1000 N
Air connection
6 bar
Electr. connected wattage
approx. 4 KW
Voltage supply standard
400V/3/N/PE/50Hz
Protection class
IP 54
Weight
approx. 1000 kg
Colour standard
stainless steel - alu
Packaging material
Nonwoven fleece, paper foils, special foils
TECHNICAL DETAILS:
OPTIONS:
