OVERVIEW
Single rotor high-torque cutter/hog for primary size reduction of large, dense materials
- Ideal for reducing EPDM/SB synthetic rubber, wood, chemicals, plastics, detergent blocks, scrap products, fertilizer, resins, chocolate blocks and other large, dense materials
- Reduces large blocks and chunks into particles ≥ 1/16 in. (1.6 mm).
- Chamber lengths from 12 to 36 in. (305 to 914 mm)
- Material feed via gravity or optional pneumatically-driven ram feeder
- Available paired with SCC Screen Classifying Cutters for secondary size reduction ≥ 20 mesh

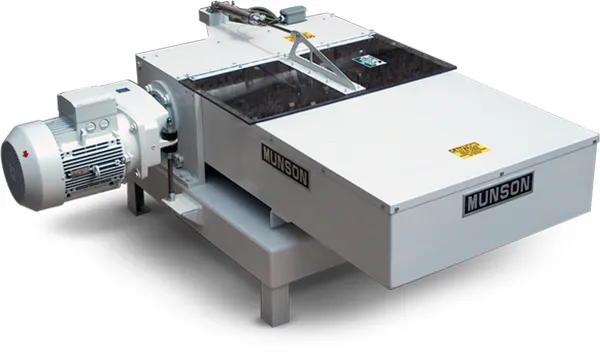

The MUNSON® CX Heavy Duty Cutter is a high-torque cutter/hog that delivers a positive raking action for reducing blocks and chunks of high-density materials up to 30 in. (762 mm) wide and 8 in. (203 mm) high, into particles ≥ 1/16 in. (1.6 mm) depending on application.
The rotor assembly is comprised of tightly stacked discs that are interlocked to rotate as one high-inertia mass. Each disc is machined with two full-width slots on opposing sides that are fitted with replaceable tool steel cutter inserts of the same width, with no gaps between cutter pathways, subjecting the entire face of incoming material to aggressive ripping action.
The solid rotor discs act as a backstop for incoming materials to control particle size and limit the feed rate to prevent overcharging of the chamber.
In addition to shredding the material, the cutters shear it against a full-width, tight-tolerance bed knife located at the downswing side of the material chamber.
The high-mass rotor is driven by an oversized sheave and V-belt drive at 300 RPM as standard, producing the high torque and inertia needed to tear through products that would stall or overload standard cutters. Also offered are gear reduced
Features
- Cutting, ripping and shearing against full-width bed knife
- Chamber lengths of 12, 24 and 36 in. (305, 610 and 914 mm)
- 12 in. (305 mm) overall diameter
- Solid, high-inertia rotor mass with replaceable, progressively stacked cutter inserts secured by high-tensile machine screws
- Cutter inserts and anvil-supported, adjustable bed knife of proprietary hardened tool steel
- Positive rake-angle blade design increases shearing efficiency
- Bed screens from 1/16 in. (1.6 mm) round to 6 in. (152 mm) square
- Gravity feed system
- V-belt to sheave drive arrangement
- Fully enclosed drive guards
- Common support base for cutter housing and drive components
- Rotor shaft supported by outboard-mounted flange block bearings
- Construction of heavy-gauge carbon steel
