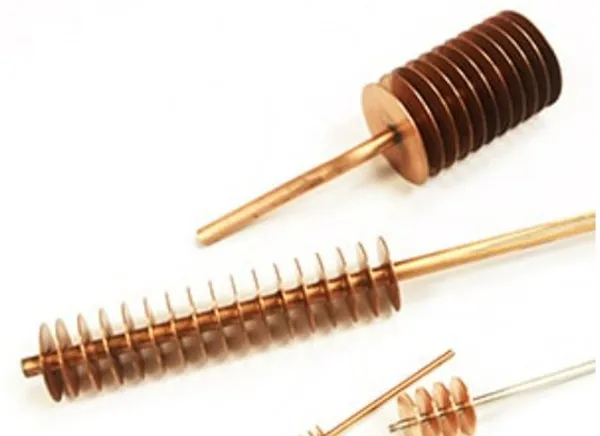

Heat Pipes

Heat Pipes

What is a Heat Pipe?

Heat pipes are the most common passive, capillary-driven of the two-phase systems. Two-phase heat transfer involves the liquid-vapor phase change (boiling/evaporation and condensation) of a working fluid. The heat pipe technology industry leader, Noren products has specialized in the design and development and manufacturing of passive, two-phase heat transfer devices since 1968.

Heat pipes have an extremely effective high thermal conductivity. While solid conductors such as aluminum, copper, graphite and diamond have thermal conductivities ranging from 250 W/m•K to 1,500 W/m•K, heat pipes have effective thermal conductivities that range from 5,000 W/m•K to 200,000 W/m•K. Heat pipes transfer heat from the heat source (evaporator) to the heat sink (condenser) over relatively long distances through the latent heat of vaporization of a working fluid. Heat pipes typically have 3 sections: an evaporator section (heat input/source), adiabatic (or transport) section and a condenser section (heat output/sink).
