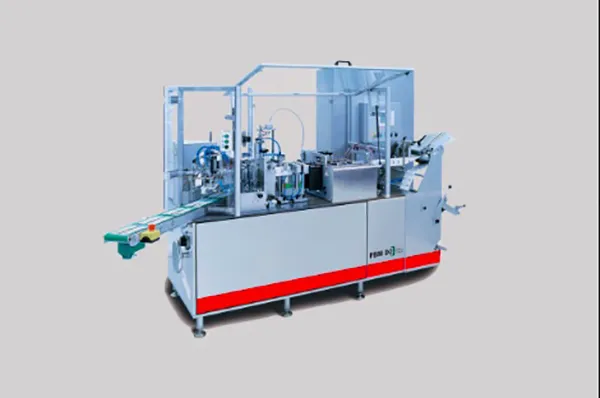

FBM Simplex-Duplex
Machine:
FBM Simplex
FBM Duplex
Nominal Speed dry run:
Upto 100 pouches/min
Upto 200 pouches/min
Connect load:
6kW, 415V,3Ø+N, 50Hz
7kW, 415V,3Ø+N, 50Hz
Air consumption at 6 Bar:
10 NL/Cycle
13 NL/Cycle
Machine size(LxWxH,mm):
2500 x 1150 x 2100
Machine Construction:
MS Painted, Contact Parts are in AISI -316
Bag Width Size:
40mm – 180mm
40mm – 90mm
Bag Length Size:
50mm – 210mm
Filling Volume:
1 cc To 750 cc
50 cc To 250 cc
Packaging Material:
All Heat Sealable Laminate
