PerMix Paddle Mixers
PerMix Paddle Mixers
PerMix Paddle Mixers lead the industry in technology, performance, and value. PerMix Paddle Mixers are available in four types, our standard Horizontal Paddle Mixers, Horizontal Paddle Mixer / Dryers, Twin Shaft Paddle Mixers, also called Fluidized Zone Mixers & our new Vertical Paddle Mixers called our PAM Series. Our Paddle Mixers, Twin Shaft Paddle Mixers / Fluidized Zone Mixers, as well as our Paddle Mixer / Dryers are available in capacities from 1 liter to 30,000 liters, and have options that are endless. Our PAM series Vertical Paddle Mixers have capacities of 20 liters to 5,000 liters.
Permix PTP series paddle mixers are efficient and versatile blending machines for mixing of dry powders. Paddle mixers are so versatile that they can also handle short fibered substances, moist solids with liquids, pasty materials, and highly viscous masses.
PerMix Horizontal Paddle Mixers Working Principle

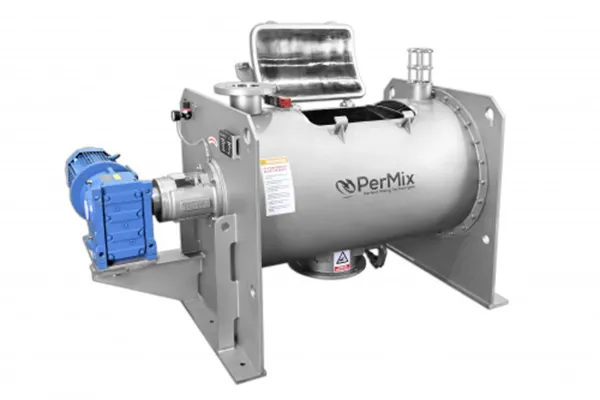

The PerMix Paddle Mixers consist of one electrical motor, one reduction gear, coupling, and shaft with an agitation that has paddle liked shaped attachments that collide with ingredients causing a multi-directional response that mixes products quickly. The shaft is sealed with bush & PTFE gland housing at both ends, with other options available. Materials are loaded from top side, and the discharge is located at the bottom side in the center or end, depending on production needs, either batch type or continuous. The discharge height can be adjusted as per requirement so that material gets discharged into the container below it without floating dust.
PerMix Horizontal Paddle MIxer Installation & Set Up
PerMix Paddle Mixers consists of one electrical motor, one gearbox, and a shaft with plows located in a O-shaped vessel. The plows are designed in such a way that the powder materials are guided to move from the two ends of vessel to the center, and meanwhile from center to both ends, and over, until batch is mixed thoroughly, in addition Paddle Mixers also lift the ingredients into the air, mixing them in a “fluidized zone” then allow them to drop back down. In such a three-dimensional way, the total powder can be mixed fast in the vessel. It asks for a short mixing time and relatively low power consumption. For out twin shaft Paddle Mixers that have twin shafts and paddle sets, there is an option for dual drives. Our Twin Shaft Paddle Mixers are also referred to as Fluidized Bed Mixers
PerMix Paddle Mixer Advantages
- High level of accuracy with minor component ratio to be 1:100,000
- The ability to choose gentle or aggressive mixing styles
- The ability to add heating / cooling, with or without vacuum
- Quick & efficient mixing of either batch or continuous mixing under dry or wet mixing
- Easy to clean in either dry or wet applications
- High heat transfer rate, ideal for heating or cooling process of the powders
- Chopper can be installed for intensive mixing and lump breaking
- The ability to change agitation styles in our Hybrid Paddle Mixers
- Vertical Paddle Mixers offer the same advantages however have more diversity as there in no minimum batch size
- Vertical Paddle Mixers also have little to no residue left after discharge
- Vertical Paddle Mixers reduce footprint, saving processing / production line size.
