PerMix Ribbon Mixers

PerMix Ribbon Mixers

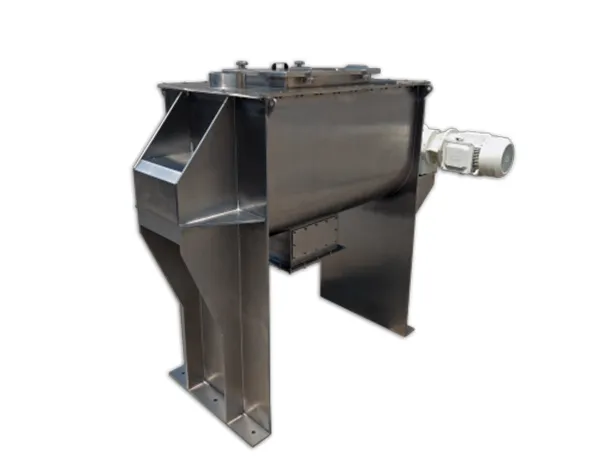

PerMix Horizontal Ribbon Mixers

PerMix Ribbon Mixers lead the industry in technology, performance, and value. PerMix Ribbon Mixers are available in two types, Horizontal Ribbon Mixers and Vertical Ribbon Mixers. Both our Horizontal Ribbon Mixers as well as our Vertical Ribbon Mixers are available in capacities from 1 liter to 30,000 liters, and have options that are endless.

PerMix PRB series Ribbon Mixer are efficient and versatile blending machine for mixing of dry powders, granules and viscous pastes homogeneously. It is able to give a satisfying “homogeneity grade” for mixing jobs due to the special design of a mixingagitator with dual ribbons inside of a U-shaped working trough.

PerMix Horizontal Ribbon Mixers Working Principle

The PerMix Ribbon Mixer unit consists of one electrical motor, one reduction gear, coupling, and shaft with spiral agitator. The shaft is sealed with bush & PTFE gland housing at both ends. Materials are loaded from top side, and the discharge is located at the bottom side in the center. The discharge height can be adjusted as per requirement, so that material gets discharged into the container below it without floating dust.
