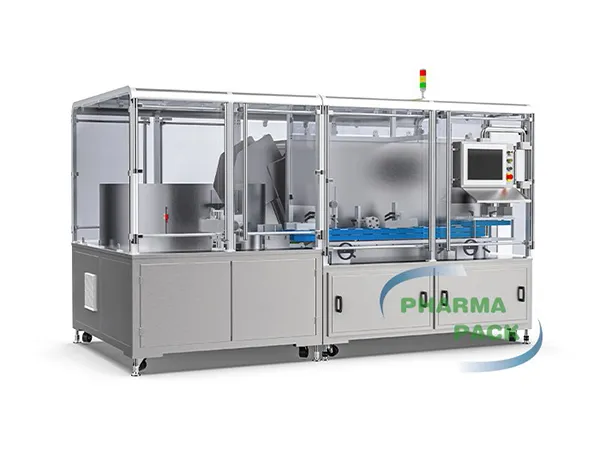

LFU-40C High-Speed Bottle Unscrambler
LFU-40C High-Speed Bottle Unscrambler
Maximum Production Speed:400 BPM (depending on the size of the product being inspected)
Category: Smart Bottle Packaging Line, Unscrambler
|
Model
|
LFU-40C
|
|
Max. speed
|
400 bottles per min.
|
|
Bottle size range
|
Ø20~ Ø105 mm
|
|
Height: 45~150 mm
|
|
Air pressure
|
6bar
|
|
Air consumption
|
50 L/min
|
|
Power supply
|
AC220V/50Hz（60Hz）
|
|
Wattage
|
2.2 KW
|
|
Measurement(L×W ×H)
|
Approx.3100×1700×1850 mm
|
|
Weight
|
Approx. 660 kg
|
Function:
LFU-40C is an automatic bottle unscrambler machine designed for the pharmaceutical, healthcare, and food industries specifically.
The function of LFU-40C is that the arbitrarily placed products through the specialized agencies are rearranged, at a certain speed to the following process.
Application：
Suitable for use in cylindrical, oval, and rectangular plastic bottles with a height between 45~150 mm and outside diameters of 20~105 mm, too large, too small, and not resistant to impact bottles (such as glass bottles) are not suitable for this machine. In practical applications, PU-40C usually use with other machines, such as automatic counting machines and other filling counting devices.
Main Features:
- High speed up to 400 bottles per min
- Equipped with SCADA system
- Broken tablet detection and rejection system
- Tracking and tracing system
- Meet with GMP, FDA requirements
Working principle :
- A to B: Manual or automatic product A into the hopper B
- B to C: Through the lifting mechanism into the barrel C
- C to D: According to the product specifications turntable at a specific speed rotation, the product along the barrel wall into the bottle body D
- D to E: and then the manager bottle conveyor into the reason bottle mechanism E
- E to F: in the F to straighten out the direction of the mouth, and then the manager of the bottle conveyor belt and export into the following process (product conveyor belt)
