DUAL SHAFT MIXERS

DUAL SHAFT MIXERS

Reynolds designs equipment for the Adhesives, Sealants, Silicones and Caulks, Coatings and Paints,
Cosmetics and Pharmaceuticals, Inks and Pigments, Rubber, Polymers, Resins, and Foams, and Specialty Chemicals processing industries.

DESCRIPTION »

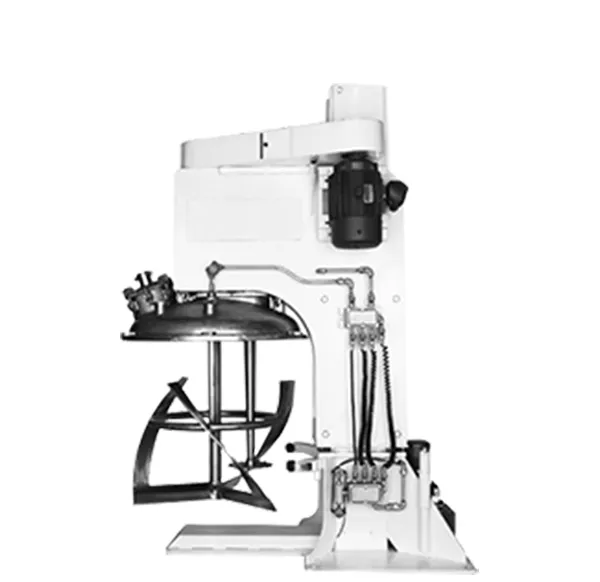

Reynolds Dual Shaft mixer is a powerful, efficient, and versatile mixer that combines a low speed helical blade agitator with a saw-tooth high speed disperser to provide optimum batch turnover in manufacturing of high viscosity products. The helical blade design with a close tolerance gap eliminates hot or cold spots in temperature controlled processes. The helical blade attached with scrapers supports improving heat transfer across jacketed vessel side wall and vessel bottom wall.

Viscous finished product that is too slow to discharge by gravity or/and support with helical blade is usually pressed out of the vessel by a platen-style Reynolds Press-Out Station System which includes a rapid advanced feature with fast and slow platen movement. This technique allows for fast and efficient product discharge transfer with minimal waste and clean-up

MIXER FEATURES »

• Helical Blade Low Speed Agitator with Offset High-Speed Disperser Blade.
• High shear or High Vane Disperser Blade
• Helical Blade Rotation
  • Clockwise Pumping Material Down
  • Counterclockwise Pumping Material Up
• Lift Actuator (Pneumatic or Hydraulic depending on size)
• ASME code stamped Vessel can be designed for full vacuum/100-psig service with 150-psig dimpled, Half- Pipe, conventional stainless-steel jacket is supplied around the vessel for heating/cooling (High pressure rating is available upon request)
• Wetted parts are stainless steel 304 polished to 120-grit for easy clean up (#4-8 Mirror finish is available upon request).
• Lid can be fitted with temperature probe, cleaning spray nozzles, vacuum fittings, light and sight glass, flanges, and multiple product inlet nozzles to deliver liquid raw materials.
• Safety switch and safety alarms are provided to prevent rotating part operation when vessel or agitator are not in mixing position.
• Manual valve design with Teflon Plug to avoid unmixed product in discharge nozzle.
• Submerged top down product measuring temperature probe to optimize actual product temperature.
