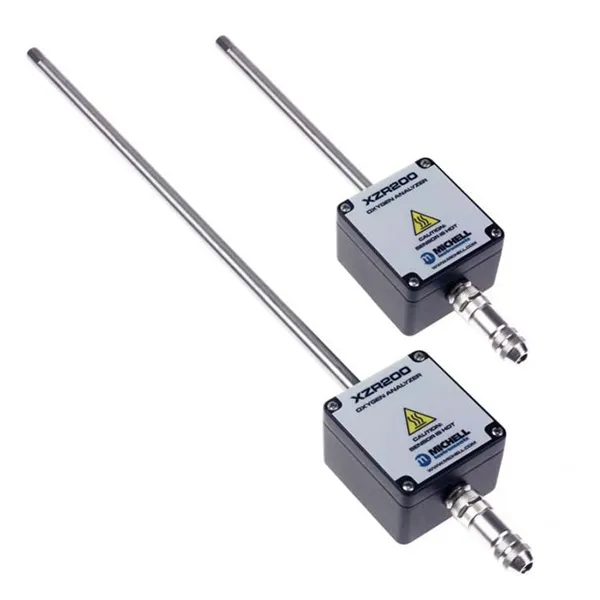

A cost effective zirconium-dioxide analyzer to measure percentage level oxygen in combustion processes, ambient air monitoring and many more applications. The unit is configurable to measure either 0-25% or 0-100% oxygen and offers manual or automatic calibration to suit the customer’s needs. Two probe lengths are available (210mm & 400mm) as well as two maximum sample temperatures (250°C & 400°C) for greater flexibility.
PRODUCT FEATURES
Configurable outputs: 4-20 mA and 0 to 10 V DC or RS232 comms interface
Cycling 3.3 V DC logic output allows direct monitoring of the O2 sensor for diagnostic purposes
Can be calibrated in normal air (20.7% O2) or in any other known O2 concentration
Selectable output filtering allows fast and dynamic or slow and stable output
Externally triggered automatic or manual calibration
Diecast aluminium case IP65 with stainless steel probe
Sample temperature up to +400°C
