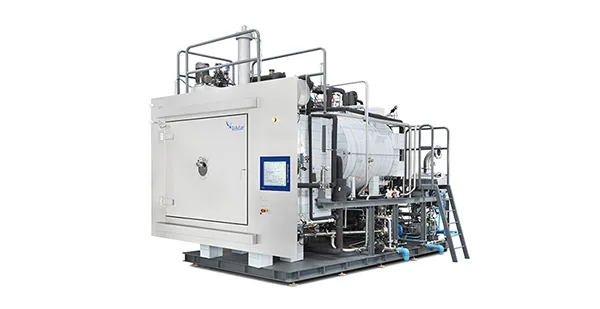

Modular GMP Freeze Dryer
The LyoZeta freeze dryer series are designed to perform clinical trials, pilot and large scale industrial freeze drying processes, in accordance with the strictest GMP and regulatory standards and in line with the latest freeze drying technology trends.
Telstar LyoZeta Series are state of the art freeze-drying systems, designed and engineered modularly to provide a comprehensive range of standard models and in-factory options. The LyoZeta Series constitutes a well-proven standard solution and provides the right balance between specification, quality, cost and lead-time.
A complete and reliable base unit
Each LyoZeta is configured as a compact unit in mono-bloc configuration that can be installed through the wall of the sterile room while offering easy maintenance access to all elements and optimizing the total space necessary.
The base unit has the following features:
It covers freeze drying areas from 4 m2 to 50 m2.
Rectangular chamber manufactured in AISI 316 L stainless steel.
Horizontal cylindrical condenser manufactured in AISI 316L stainless steel, which can be located behind or at the lateral side of the chamber.
Cartridge mushroom valve or butterfly valve to isolate the condenser and the chamber. See more about cartridge mushroom valve…
The internals of the chamber-condenser group are polished and have a self-draining design to promote effective cleaning and sterilization.
The door is constructed in AISI 316L, with a sight-glass in the centre to observe the product during the cycle.
The equipment installations are designed according to the end user’s requirements. The Mechanical refrigeration and vacuum system can be dry or oil-sealed, with or without redundancy.
Telstar freeze drying inner channel design shelf ensures high product homogeneity during the freezing and primary and secondary drying stages.
