SyPro Feeder
SyPro Feeder

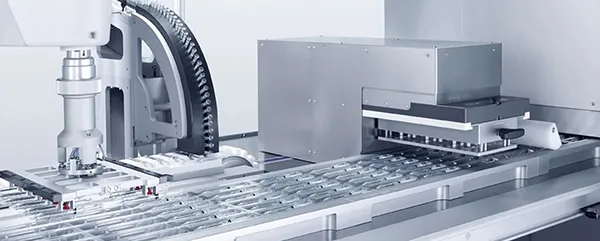

SyPro Feeder: Position syringes precisely and safely
Our SyPro pharmaceutical feeder safely and economically places sensitive glass syringes or plastic syringes in blisters – or places them in sustainable cardboard trays. For the optimal secondary packaging of syringe systems.
This is how the SyPro feeder works
SyPro is the abbreviation for "Syringe Product" and is thus a pharmaceutical feeder for syringe systems with and without needle protection. The servo-controlled SyPro feeder places up to 350 syringes per minute into blisters or cardboard trays. On high-performance machines, output can be increased to up to 600 syringes per minute by extending the filling section and adding a second SyPro feeder. Alternatively, the feed capacity can be increased in a space-saving manner and via a second prismatic belt.
A robot with vacuum suction cups lifts the products from the conveyor and places them in blisters or cardboard trays in a precise position. Depending on the line, a SCARA or delta kinematic systemis used. In clamp packs, the press-in station gently fixes the syringes in the pack.
Avoid glass breakages through gentle product handling
Parenteral products such as biopharmaceuticals are often so highly priced that pharmacists or packaging service providers need to avoid the loss of individual doses through broken glass. In addition, glass breakage significantly affects productivity because production has to be interrupted, the line cleaned and restarted. Microcracks in the syringe systems can also trigger glass breakage. This is why the SyPro feeder processes sensitive glass syringes particularly gently:
- Gentle transportation
- Use of a robot with vacuum cups for placement in blisters and cardboard trays
- Staggered pressing into clamping blisters in two work steps
Environmentally-friendly secondary packaging made of cardboard: “Direct in Box" feeder
The requirements for secondary packaging of parenteral productcs are high. They must not only protect the product, but also be user-friendly and sustainable. The SyPro feeder is therefore not only suitable for plastic blisters, but also for feeding syringes into cardboard trays, for example with the PTC 200 cartoner line.
Advantages of the SyPro feeder
Economical
Safe feeding of glass syringes or plastic syringes
Gentle
Avoidance of glass breakages and gentle label handling
Strong
Output of up to 350 syringes per minute, expandable up to 600 syringes per minute
User-friendly
Automatic emptying of the line, no manual product removal necessary
Uncomplicated
Easy-to-clean components for simple machine maintenance and fast format changes with few format parts
