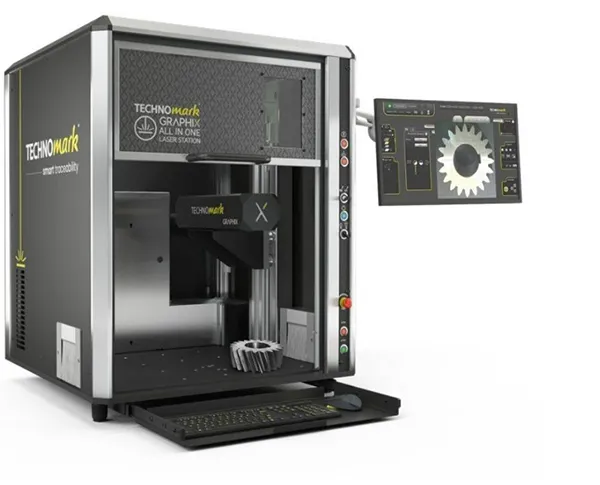

NEW Graphix

NEW Graphix

The brand new Graphix fibre laser is an innovative all-in-one compact laser marking workstation that makes laser marking accessible to all. The new Graphix is adaptable and intelligent with easy to use, intuitive software suited for both novice and experienced users.

  • New high performance camera and smart view function where the text can be viewed on the component whilst setting up the data file for easy positioning
  • Powerful and intuitive software
  • High performance on-board electronics and marking head
  • Ability to mark alphanumerical marking (text, symbols, serial numbers, variables), 1D and 2D codes and logos
  • Designed for Industry 4.0

Product Details

    • New high performance camera and smart view function, allowing direct viewing of the text on the component during setup
    • Assisted door opening with 2 positions for easy access to parts
    • Motorised column - Digital Z-axis control with a 400mm working stroke
    • Dynamic live positioning of the marking data on the component
    • New option of 2 operating modes - Creation mode for the easy setup of marking files and Production mode for producing your mark and helping you minimise errors and optimise productivity
    • Multi-level marking - Optimisation of the laser path in 3 dimensions with the multiplane software function, which also gives the ability  to mark on different heights on a component (stepped or curved)
    • Automatic, semi-automatic and manual modes
    • Multiple parameters and customisable settings
  • Dimensions
    • 800x755x985mm laser station
    • 500x500x400mm loading capacity
    • 100x100mm marking window (140x140mm option)

Environment and Power

    • 20W, 30W or 50W fibre laser power options
    • Electrical power: 100-240V
    • Power/frequency: 600W / 50 to 60Hz
    • 2 USB ports, 1 ethernet port and 1 VGA port
    • Windows 7
    • Small rotary
    • Side openings (single or double) for loading long parts
    • Powered Z axis
    • Electric powered doors
    • Heavy duty rotary
    • Fume extractor
    • 4 positions for the marking head
    • Integrated drawer
