Piston Liquid Filling Machine

Piston Liquid Filling Machine

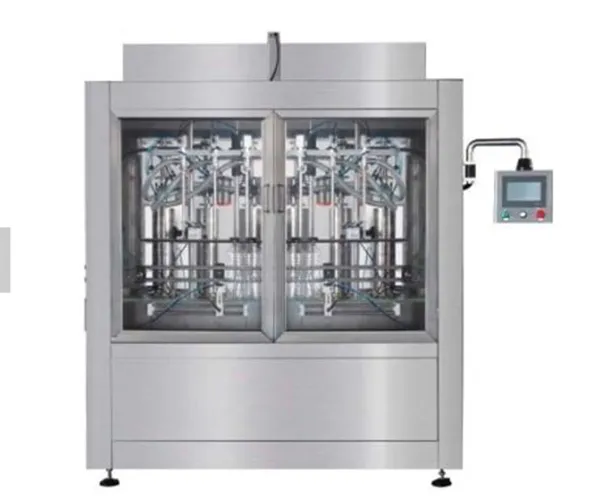

The RJ-AF Automatic Liquid Piston Filling Machine is designed for the automatic filling of liquid with certain or high-viscosity(If you want to fill low-viscosity liquids, you can choose our Gravity Liquid Filling Machine), such as oil, hand sanitizer, cream, sauce, honey, ketchup, etc. The machine is mainly used in the chemical, food, and pharmaceutical industries. Liquid Filling Machine has a lot of advantages, all parts are made by CNC precision machining, the whole machine uses high-quality stainless steel as the manufacturing material, the main electrical parts of the machine were imported, controlled by PLC, operated by touch screen, controlled by servo motor filling, high precision almost no need for maintenance, just simple maintenance.

Features

• Users can choose from 2 to 16 filling heads.
• Drip-proof filling head design.
• When filling, the filling head will be inserted into the bottom of the bottle, the filling head will rise during filling.
• The filling volume can be adjusted by touching the screen and shaking the lever.
• Frequency control, no bottle no filling.
• Using the upper type liquid cylinder, when the liquid in the cylinder is insufficient, it can automatically alarm and complete the liquid supply automatically.
