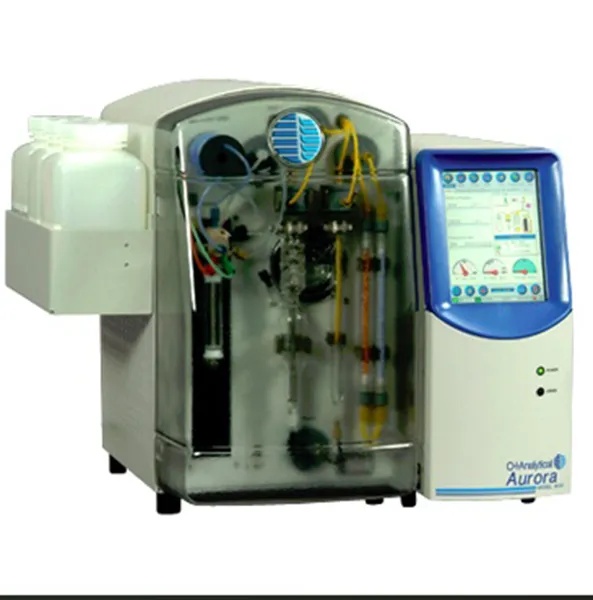

OI Analytical Aurora 1030C TOC Analyzer

OI Analytical Aurora 1030C TOC Analyzer

The Aurora 1030C TOC Analyzer processes aqueous samples for analysis of the total organic carbon (TOC), total inorganic carbon (TIC), and non-purgeable organic carbon (NPOC) content of the samples. Samples containing 100 ppb to 30,000 ppm of organic carbon can be analyzed. The Aurora 1030C supports USEPA-approved methods, Standard Methods, ASTM, DIN/ISO/CEN, and EU Methods. Depending upon the protocol employed, up to 300 samples per 24-hour period can be analyzed, and in excess of 100,000 samples per year.

The Aurora 1030C employs high temperature (680 °C) catalytic combustion to oxidize and convert organic compounds present in aqueous samples to CO2 for measurement by a solid state non-dispersive infrared (SS-NDIR) detector.

The high temperature combustion technique is most effective for analysis of samples containing high molecular weight, difficult-to-oxidize organics (e.g; humic acid) at levels > 500 ppb C.

The Aurora 1030C is equipped with a patented* two chamber combustion reactor that overcomes problems associated with TOC analyzers that use a single chamber reactor. The first chamber of the 1030C reactor contains a bed of quartz to protect the platinum catalyst in the second chamber from deposition of noncombustible constituents, and ensures consistent oxidation conditions for stable blanks. This reactor design extends catalyst life and reduces instrument maintenance costs.

Specifications

Operation Principle	High temperature (680 ˚C) catalytic combustion
Measurement Technique	Non-dispersive infrared (NDIR) detection
Measurement Range	100 ppb C – 30,000 ppm C (multiple calibration ranges or dilution required)
Instrument Detection Limit (IDL)	50 ppb C
Operator Interface	Color LCD touchscreen display with Windows® CE-based software
Operating Modes	Standalone (Windows® CE), PC-controlled, or LAN/ LIMS network connectivity
Basic Software	Single instrument operation with data transfer to PC
Optional ATOC Software	Network LAN/LIMS operation for data collection, management and custom report generation
Autosampler	88 position rotary autosampler designed to fit directly underneath Aurora 1030C analyzer
Sample Injection	Manual syringe, sipper tube, autosampler, or multistream at-line sampling module
Certification	CE, EMC: EN61326 / Safety: IEC 61010-11 2001
Reagents Required	Hydrochloric acid, rinsewater
Sample Injection Volume	10µL – 0.8 mL
Method TC	680 ˚C Pt catalyst, 900 ˚C non-catalyst packing
Method TIC	Acidification and sparging
Method TOC	NPOC, combustion of TIC-free sample, TOC–TIC
Furnace Temperature	Adjustable, 680 – 950 ˚C in 1 ˚C increments
Repeatability	3.0%
Accuracy	±2% FS or 2% relative, whichever is greater
Sample pathway	Color coded Teflon® tubing
Sample handling	Syringe with isolation loop to prevent contamination
Gas Supply	Zero-grade air, or O2 (99.998%)
Power Supply	Variable voltage, 100-240VAC, 50/60 Hz, 950W
Dimensions – Aurora 1030	42.5 cm H x 49.5 cm W x 41.9 cm D (16.75 in. H x 19.5 in. W x 16.5 in. D)
Dimensions – Aurora 1030 + 1088 Autosampler	26.75 in. H x 19.5 in. W x 23 in. D
Weight – Aurora 1030 + 1088 Autosampler	15.4 kg (34 lbs.), 34.5 kg (76 lbs.) 1030W + 1088
