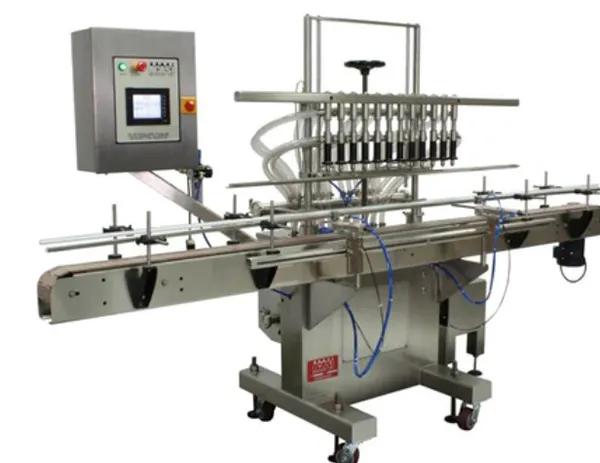

Pressure Overflow Bottle Filler - Model GI 3300

Price as shown is for a 6-head machine with PLC-controlled pneumatic drip tray and a 10 ft conveyor (4.5 in. wide acetal chain) with speed control

Construction features:

• 304 Stainless steel heavy duty stainless steel welded C frame.
• 20 Gallon stainless steel overflow tank.
• Stainless steel cover for overflow tank.
• 20 hose 304 stainless steel feeding manifold.
• All contact parts are stainless steel, sanitary, Teflon, viton and hoses per your requirements.
• Special seals or hoses by order.
• Calibrated guide for fast height changeovers.
• Filling machine mounted on 4 heavy duty casters.
• Leveling of machine by 1 inch 304 stainless steel leveling screws.

Control panel features:

• Omron PLC for all machine logic functions, special modifications on programs available for special adaptations.
• Frequency control drive for pump speed, acceleration and deceleration.
• Front panel bottle filling time adjustment through Omron Timer.
• Front panel conveyor speed control for machine sold with conveyor.
• Front panel mounted bottle counter.
• Front panel Start and Emergency STOP for easy access.
• Front panel nozzle code for changing nozzle quantities.
