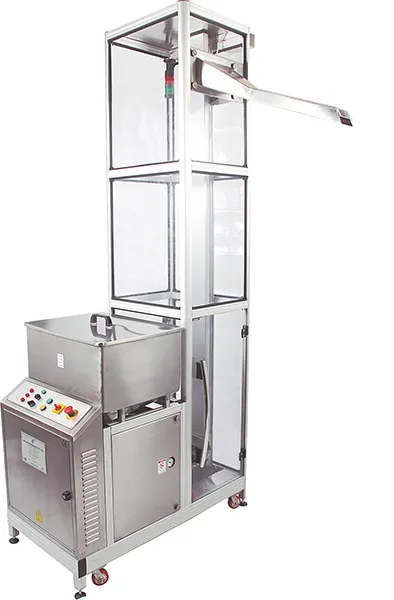

Tablet & Capsule Elevator Standard

Tablet & Capsule Elevator Standard

Tablet & Capsule Elevator is designed to eliminate the need for manual feeding of tablets / capsules from floor mounted hopper to the hopper of blister packing, counting or similar machines at a higher level. The machine complies with cGMP and safety regulations. All product contact parts are made of SS 316L and can be dismantled easily, without the use of any tool.

Special Features

• CE certified design with all electrical safety compliances.
• Product hopper capacity 100 litres.
• Feed capacity of 120-150 kg/hr.
• Easy to use; easily operable by unskilled worker.
• Pneumatic scoop lift.
• Vibratory feeder with suitable dust extraction points.
• Single scoop of 4 to 6 litres with auto level detection.
• Gentle lifting and tilting of scoop eliminates damage of delicate products.
• Fully enclosed from all sides with transparent cast acrylic guards.
• Standard tilting height of 2000mm.
• Additional sensor provided for packing machine hopper's level detection and synchronization.
• Required product level in the hopper of the packing machine maintained all the time.
• Standard product feeding discharge speed is 360Ltr - 549 Ltr per hour.

Technical Data

• Model No. AP-TCE
• Power Supply 230 V,50 Hz AC
• Compressed Air 6 Bar
• Scoop Capacity 4 to 6Ltrs. Approx.
• Main Container Capacity Up to100 Ltrs.
