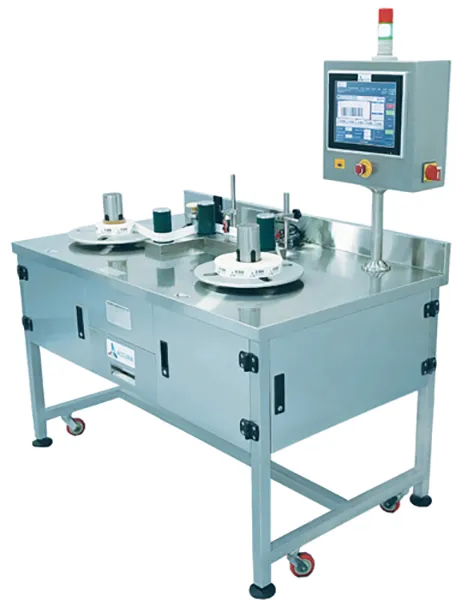

Label Counting & Inspection Machine LISA

Label Counting & Inspection Machine LISA

Accura’s Label Counting & Inspection Machine LISA, not only dispenses with the need of tedious manual counting of product labels, but also inspects the entire label for defects. The machine complies with the cGMP norms. Optimum accuracy and proper accountability can be achieved in minutes, owing to the simplified features of the machine without a skilled operator.

Special Features

• 21CFR part 11 compliant
• OCV / OCR
• Entire label inspection
• Barcode / pharmacode / 2D code inspection of roll labels at high speed.
• Highly accurate label counting speed of 1500 labels per minute.
• 10.4 inches IPC with Core i3 equivalent processor
• Zenon Scada software.
• Microsoft Windows 7 professional operating system.
• Ability to count pre-determined label quantity.
• Report generation and printing facility for USB based printers.
• cGMP compliant.
• High speed, easy to operate machine.

Technical Data

• Electrical Supply: 110 V, AC 60 Hz, I Phase
• Compressed Air: 6 Bar
• Motor Specifications: ½ HP. 3Phase 220 V AC
• PLC : Allen Bradley make
• AC Drive: 0.5 Kw Allen Bradley / Equivalent make VFD
• SMPS Unit: Omron make
• Sensor: Fork optical type sensor Leuze make
• Overall Dimensions: 1400mm x 800mm x 800 mm height
• Weight: approximately 400 Kg
