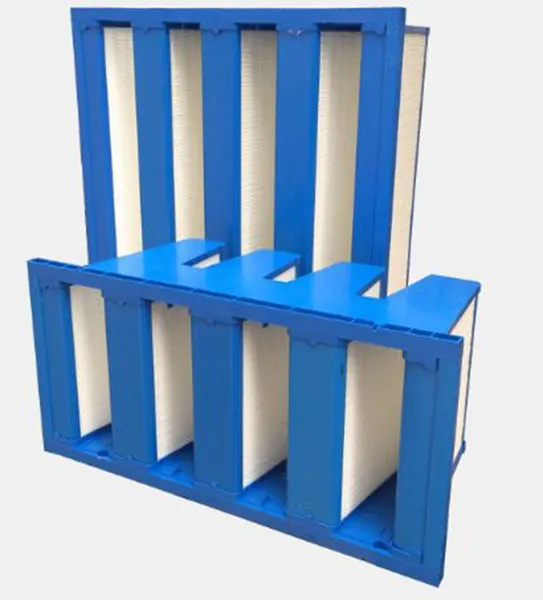

Rigid Bag
Rigid Bag / Compact Air Filters – M6, F7, F8 and F9 to EN779 / ISO 16890 & Grade E10 to EN1822
– High Initial Efficiency
– Plastic Casing with fully sealed filter media
– Water Repellent
– Rigid construction
– Can operate at varied air flow
– Energy Efficient Filter
Applications
Rigid Bag Filters can be used in a wide variety of air conditioning and general ventilating applications where large volumes of air are to be handled and systems dictate high dust holding capacity, coupled with low initial resistance.
Grades M6 to F8 are commonly used for pre filtration to final filters such as HEPAs, or to offer a good level of indoor air quality for supply air in offices or auditoriums.
E10 HEPAs offer the lowest HEPA grade filtration in a rigid bag form, and are often used for the removal of fine particulates found in kitchen extract exhaust, or for the supply of air where the highest quality is demanded.
Description
The filter contains a high filtration area by using mini pleat filter media using hot melt bead separators.
The mini pleat filter slabs are sealed into a plastic frame into a unique V formation. The plastic frame incorporates a header frame that will be either 20 or 25mm in thickness.
Technical
These filters provide an improved efficiency performance over traditional bag filters. They outperform bag filters in all facets of arrestance, efficiency, capacity, pressure drop and service life.
The filters can also be supplied to fit existing bag filter installations with fitted headers to suit.
Maximum Operating Temperature: 60 Degrees Centigrade
Maximum Humidity: 100% RH
