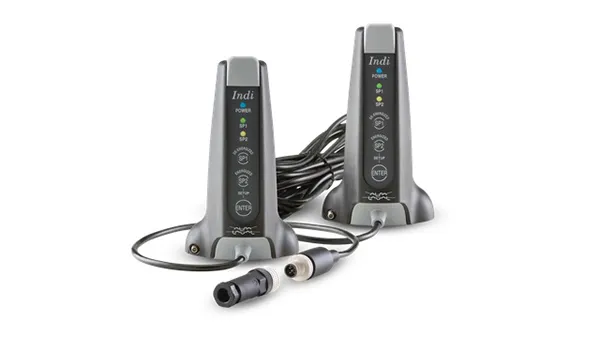

IndiTop
IndiTop
Straightforward and easy to use, IndiTop provides accurate and reliable information about the status of most standard sanitary valves used in the dairy, food and beverage, and biopharm industries.
Product Benefits
- Streamlined, low-maintenance design
- Sturdy and durable
- Cost-effective control
How it works
Construction
IndiTop consists of a valve indication housing, proven no-touch, set-and-forget sensor system with light-emitting diodes (LEDs) and valve control sensor board for connection to the PLC (Programming Logic Controller) system.
Operating principle
The sensor system calculates the angle between the axial magnetic field produced by an indication pin mounted on the valve stem. This provides indication with an accuracy of ± 1mm of the position of the valve at any given time through the use of microchip sensors.
The IndiTop unit transmits status and condition to any PLC system using one of two DC/AC or PNP/NPN digital feedback signals. LEDs display the current main valve position and on/off power status at all times.
Options
Three versions based on fixed cable lengths are available for connection: 5 m, 10 m or 0.5 m with an M12, 5-pin stainless steel plug connector including the plug counterpart.
Ease of installation
Installation is straightforward; no special expertise, adapters or tools are required. IndiTop fits onto all Alfa Laval sanitary actuators equipped with mushrooms. Simply press a five-button startup sequence to initiate foolproof manual setup. Or facilitate setup using the optional remote control wire function in combination with the PLC system. No dismantling is required.
