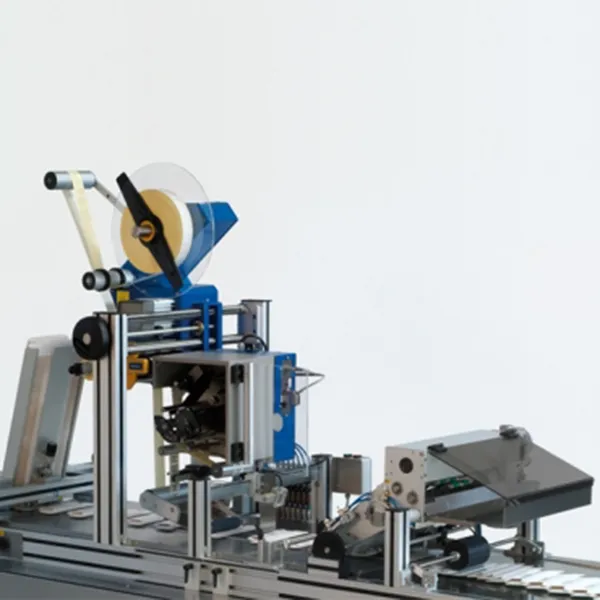

System9 labeling machine
CHARACTERISTICS
System9 labeling machine is specially designed for feeding postcards, envelopes, leaflets, flat boxes, cards, which are automatically lifted by an arm and carried on by a vacuum transport system. The system is available with both alternating and continuous motors, and can also be equipped with a dispenser, labeler and printer unit . For dispensing, labeling or printing products.
Production speed
max 24,000 pcs/h
Product length
60 – 300 mm
Product width
100 – 370 mm
Product thickness
0.5 – 5 mm
Tag length
20 – 240 mm
Label width
10 – 128 mm
Outer coil diameter
280 mm, optional: 380 mm
Inner coil diameter
40-75 mm
Machine length - wind - core
2935 x 850 x 2000 mm
Electrical input
2000 W
Compressed air
6 bars
