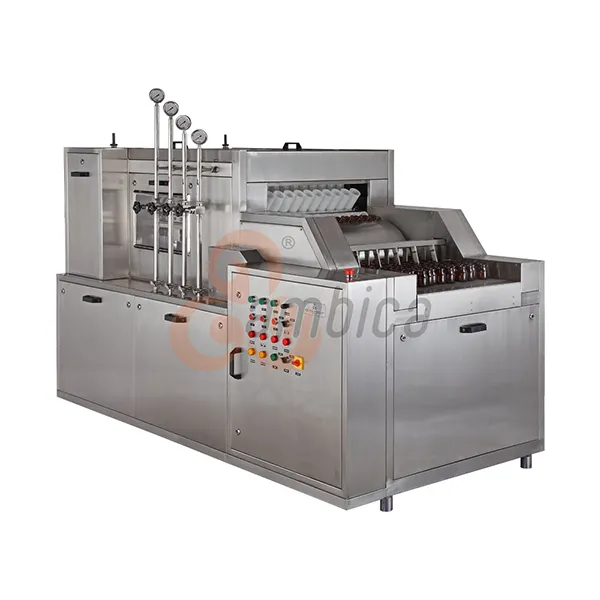

Automatic High Speed Tunnel Type Vial Washing Machines

Automatic High Speed Tunnel Type Vial Washing Machines

Models: AHVW-T-120 and AHVW-T-240Tunnel type vial washing machine is designed to wash internal and external surface of vials in intermittent linear motion.Vials are held into pockets while washing. It has 6 to 8 washing stations having three to five internal water washes of Recycled Water, Purified Water & WFI and three to five air washes where as to clean external surface it has one water and air wash. This washing cycles are flexible and can be customized as per client’s need.The machine has 3 nos of tanks respectively for Recycled Water,Purified Water & WFI with 3nosofcentrifugalpumpsto ensure proper pressure for cleaning.

Salient Features

• Three types of water washes such as Recycled Water Wash, Purified Water Wash & WFI followed by Sterile Compressed Air.
• Nozzles entering into the vials while spraying ensures deep cleaning of vials.
• High Pressure Spraying Nozzles ensures perfect wash of vials.
• Water Spray is electrically controlled by magnetic valve.
• No Change Parts required for washing of 5ml to 30ml vials.
• All parts coming in contact with washing zones / jet are made of SS 316 materials.
• Customizable washing cycling.
• Machine is totally rigid and withstands continuous operation for long working hours without any trouble.
• 3 nos. S.S.316L tank with Centrifugal Pumps.

Optional Accessories

• Pneumatic Vial Lifting Device with Pre Inspection table.
• PLC with Touchscreen HMI.
