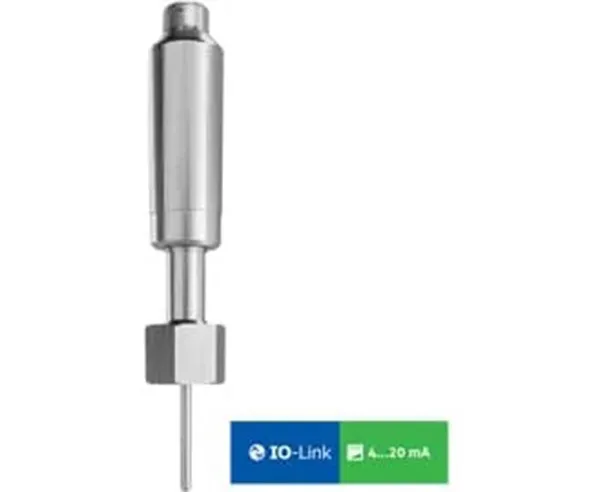

TSMF Temperature Sensors Mini
TEMPERATURE SENSORS, IO-LINK
Mini sensor series of the new TS generation: extremely flexible, modular, user-configurable │ with IO-Link
TS is the fully compatible successor of the existing TFP series
Technical Specification
Process Connection
CLEANadapt │ Tri-Clamp │ Varivent │ FLEXadapt ESF │ Thread | Without thread
Insertion length
0…2000 mm (flush version available)
Wetted material
Stainless steel 1.4404 (AISI 316L) │ PEEK (Dependent on type )
Measuring range
-200 °C …+400 °C
Accuracy
<±0.1 °C/°F
Available versions
Head Ø18 mm │ Spacer │ Transmitter
Operating pressure
max. 50 bar | 10 bar (Dependent on type )
Communication
4…20 mA, IO-Link
The values shown are the performance limits within the product line. The product-specific data for each individual configuration can be obtained from the product information
