XTRACT 16

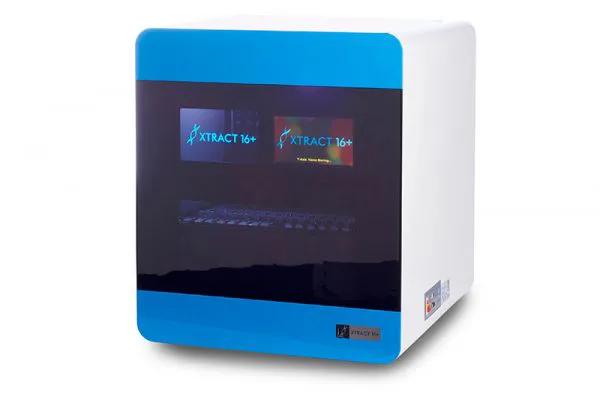

XTRACT 16+®
The XTRACT 16+® is our newest robotic, benchtop workstation for fast, high-yield, nucleic acid purification from virtually all molecular diagnostic, biological, clinical, and forensic sample types. Key features include a small footprint, lightweight, user-friendly interface, a broad range of entirely built-in programs with free upgrades, and 1-16 samples that can be isolated simultaneously at your fingertips. Our instrument will simplify your daily routine, providing full traceability of kits and samples through real-time mobile monitoring and a complete report that can be downloaded on a computer at the end of each run.
Extraction Principle
Unlike the traditional method of purifying nucleic acid, our magnetic beads allow specific binding to DNA/RNA with minimal cross-contamination and no clogging concerns. To live out the idea of walkaway automation, we are always optimizing our program and protocols to allow users to apply specimens directly onto our systems with minimal pretreatment.
Full Traceability of Samples & Kits (LIMS)
A .csv report is generated at the end of each run and contains all relevant data including:
- User’s name
- Sample and kit barcode
- Protocol number
- Sample and elution volume
- Start and end time
The file can be subsequently processed by a LIMS.
Real-Time Mobile Monitoring
To see real-time information about the run processing status, and the remaining time and errors during the run, our instrument HMI can be accessed with Wi-Fi via your smartphone/tablet through our app; Android and iOS compatible.
Specifications
Content
- Power Supply
- Voltage: AC 100-240V
- Frequency: 50/60Hz
- Power Consumption: >1.5kVa
- Pipetting Unit: X-, Y- and V-axis movements for sample transfer and dispense
- UV Light: power 8W, life duration 10,000hrs
- Heating Block: room temperature -90℃
- Weight: 70kg/154.35lbs
- Dimensions: 23.62” W x 23.62” D x 23.62” H (600mm W x 600mm D x 600mm H)
- Electric Control: PLC module and ARM-based main board embedded
- Display Screen: 7” color touch panel
- Accessories: T-racks, cartridge racks, barcode scanner
Operating Parameters
- Capacity: 1-16 samples
- Processing Time: 30-90mins
- Sample Volume: 200/400μl/1.2ml/3ml/4ml
- Elution Volume: 30/60/100/150/200μl
- Storage Temperature: 15-35℃
- Operating Temperature: 18-30℃
- Pollution Degree: Level 2
